MX01
(Plasmid
#158624)
-
Purpose(Empty Backbone) GATEWAY and BacMam compatible mammalian expression vector with eGFP expression reporter (eGFP is expressed by same promotor but as a separate polypeptide chain).
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 158624 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-

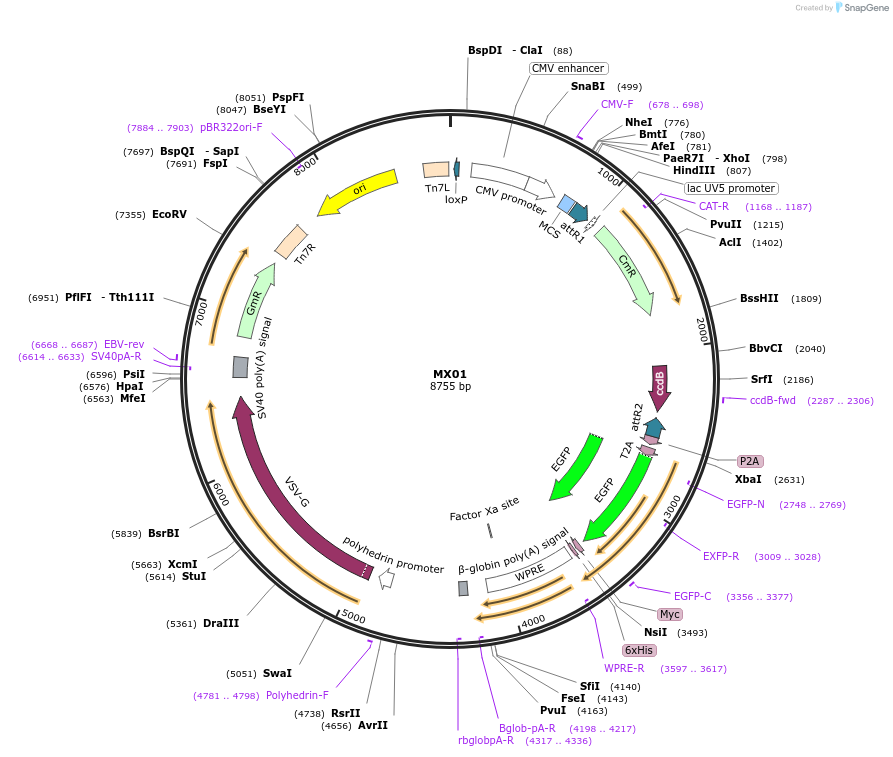

Vector backboneMX01
-
Backbone manufacturerShubham Singh
- Backbone size (bp) 8755
-
Modifications to backboneNew backbone, synthesized by using Gibson Assembly.
-
Vector typeMammalian Expression ; GATEWAY Destination Vector ; BacMam Acceptor Vector
- Promoter CMV-IE
-
Tag
/ Fusion Protein
- P2A (C terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol and Gentamicin, 25 & 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)ccdB Survival
-
Copy numberHigh Copy
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer CMV-F
- 3′ sequencing primer EGFP-N (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
MX01 was a gift from Timm Maier (Addgene plasmid # 158624 ; http://n2t.net/addgene:158624 ; RRID:Addgene_158624) -
For your References section:
The 3.2-A resolution structure of human mTORC2. Scaiola A, Mangia F, Imseng S, Boehringer D, Berneiser K, Shimobayashi M, Stuttfeld E, Hall MN, Ban N, Maier T. Sci Adv. 2020 Nov 6;6(45). pii: 6/45/eabc1251. doi: 10.1126/sciadv.abc1251. Print 2020 Nov. 10.1126/sciadv.abc1251 PubMed 33158864
