pcDNA3.1-mas-GRK2RH-Nluc
(Plasmid
#158605)
-
PurposePlasmid expressing GRK2(RH)-Nluc in mammalian cells
-
Depositing Lab
-

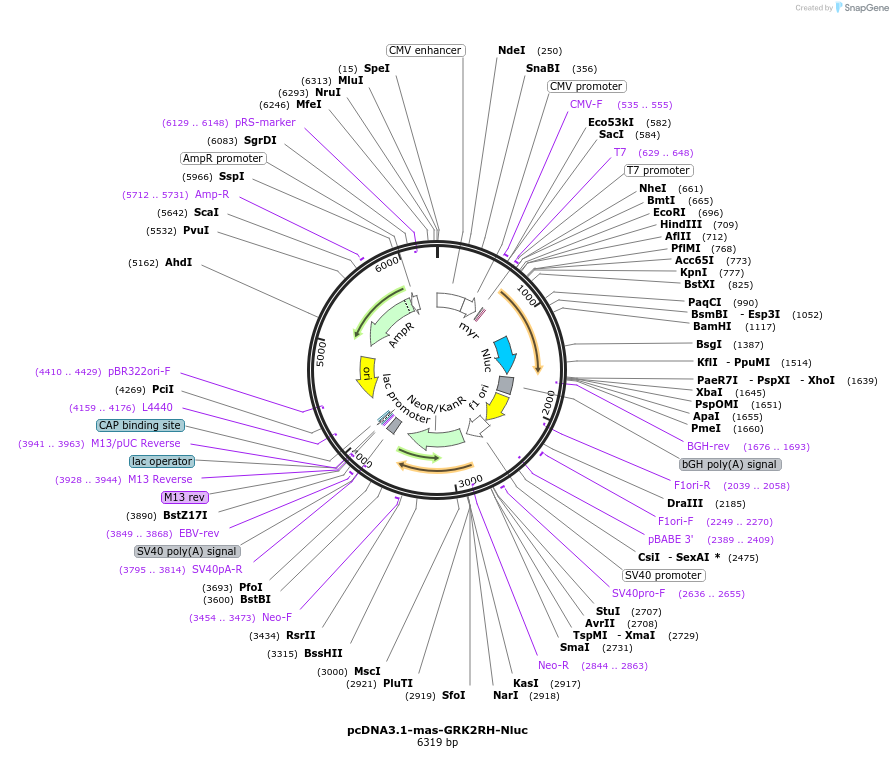

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 158605 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepcDNA3.1(+)
- Backbone size w/o insert (bp) 5428
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemyristic acid attachment peptide (mas; MGSSKSKTSNS) - linker (GIKLGG) - GRK2 RH domain - linker (GGTGGS) - Nluc
-
Alt namemas-GRK2(RH)-Nluc
-
SpeciesSynthetic
-
Insert Size (bp)969
- Promoter CMV
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer CMV-F
- 3′ sequencing primer BGH Reverse (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3.1-mas-GRK2RH-Nluc was a gift from Mikel Garcia-Marcos (Addgene plasmid # 158605 ; http://n2t.net/addgene:158605 ; RRID:Addgene_158605) -
For your References section:
Revealing the Activity of Trimeric G-proteins in Live Cells with a Versatile Biosensor Design. Maziarz M, Park JC, Leyme A, Marivin A, Garcia-Lopez A, Patel PP, Garcia-Marcos M. Cell. 2020 Jun 27. pii: S0092-8674(20)30752-2. doi: 10.1016/j.cell.2020.06.020. 10.1016/j.cell.2020.06.020 PubMed 32634377
