pEMS2271
(Plasmid #158418)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 158418 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEMS2131
  • Backbone manufacturer
    Elizabeth Simpson (Addgene plasmid # 111895)
  • Backbone size w/o insert (bp) 4999
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    SURE cells
  • Growth instructions
    “SURE” cells from Agilent, that the colonies are freshly picked, and the you limit the time to grow the culture. We typically transform the plasmid in the afternoon and take out the plate from the 37 degree incubator in the morning, we then pick the colonies and grow in LB for ~ 20 hrs
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Ple341
  • Alt name
    PCP2 MiniPromoter
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    784
  • Entrez Gene
    PCP2 (a.k.a. GPSM4, PCD5)
  • Promoter Ple341

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site FseI (not destroyed)
  • 3′ cloning site AscI (not destroyed)
  • 5′ sequencing primer oEMS6098 (GCCATGCTCTAGGAAGATCG)
  • 3′ sequencing primer oEMS6152 (CTGGCTTAGGGAGGACTTGC)
    • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    DNA synthesized at GenScript

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

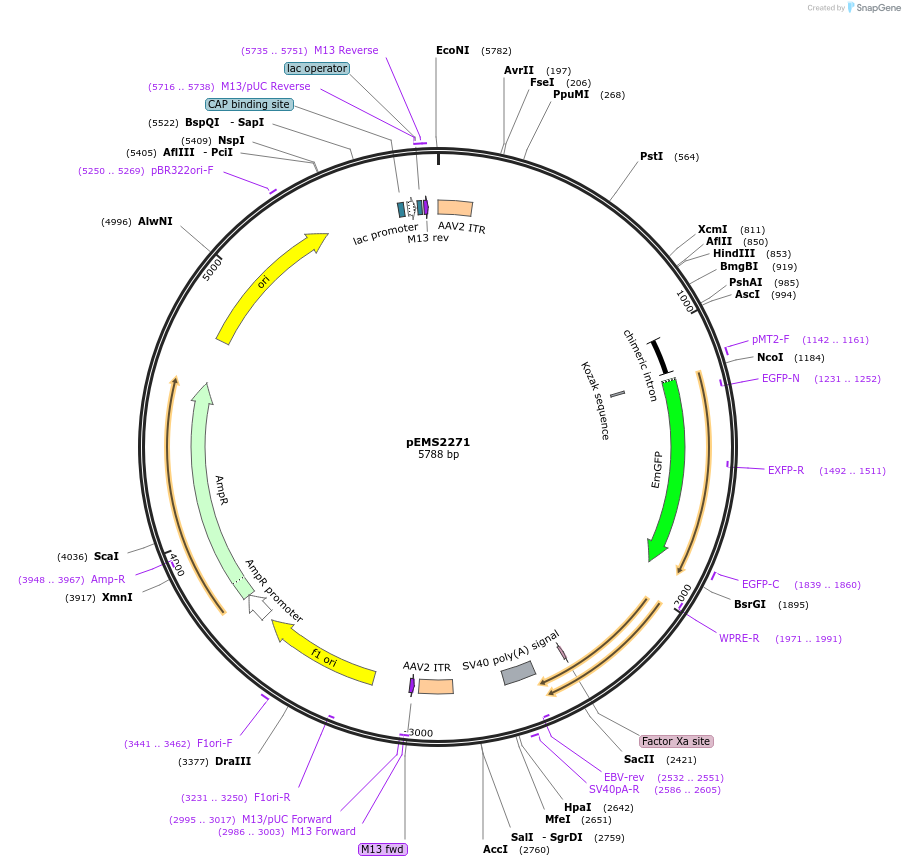

Please see the annotated GenBank file and the additional image file for the specific location of features in this plasmid.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEMS2271 was a gift from Elizabeth Simpson (Addgene plasmid # 158418 ; http://n2t.net/addgene:158418 ; RRID:Addgene_158418)

  • For your References section:

    Human MiniPromoters for ocular-rAAV expression in ON bipolar, cone, corneal, endothelial, Muller glial, and PAX6 cells. Korecki AJ, Cueva-Vargas JL, Fornes O, Agostinone J, Farkas RA, Hickmott JW, Lam SL, Mathelier A, Zhou M, Wasserman WW, Di Polo A, Simpson EM. Gene Ther. 2021 Feb 2. pii: 10.1038/s41434-021-00227-z. doi: 10.1038/s41434-021-00227-z. 10.1038/s41434-021-00227-z PubMed 33531684
