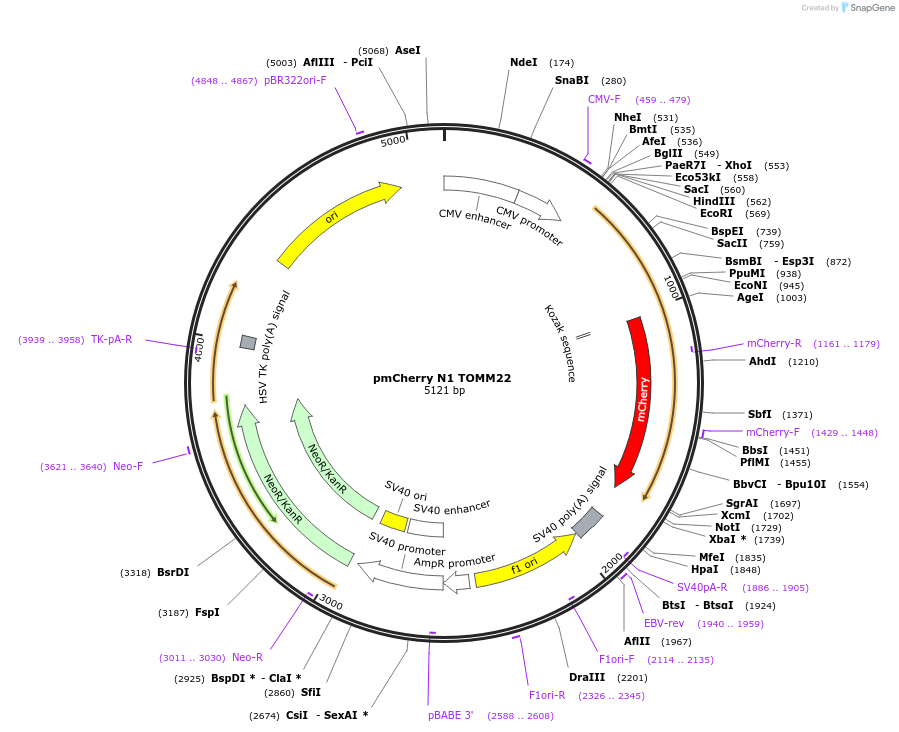

pmCherry N1 TOMM22
(Plasmid #157762)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 157762 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pmCherry-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4722
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TOMM22
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    434
  • Entrez Gene
    TOMM22 (a.k.a. 1C9-2, MST065, MSTP065, TOM22)
  • Promoter CMV
  • Tag / Fusion Protein
    • mCherry (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site AgeI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer mCherry-R
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pmCherry N1 TOMM22 was a gift from Marc Tramier (Addgene plasmid # 157762 ; http://n2t.net/addgene:157762 ; RRID:Addgene_157762)

  • For your References section:

    Aurora kinase A localises to mitochondria to control organelle dynamics and energy production. Bertolin G, Bulteau AL, Alves-Guerra MC, Burel A, Lavault MT, Gavard O, Le Bras S, Gagne JP, Poirier GG, Le Borgne R, Prigent C, Tramier M. eLife. 2018 Aug 2;7. pii: 38111. doi: 10.7554/eLife.38111. 10.7554/eLife.38111 PubMed 30070631
