GGDest2-Amp
(Plasmid
#157650)
-
Purpose(Empty Backbone) Golden Gate assembly of a pET28-compatible fusion-protein ORF insert
-
Depositing Lab
-

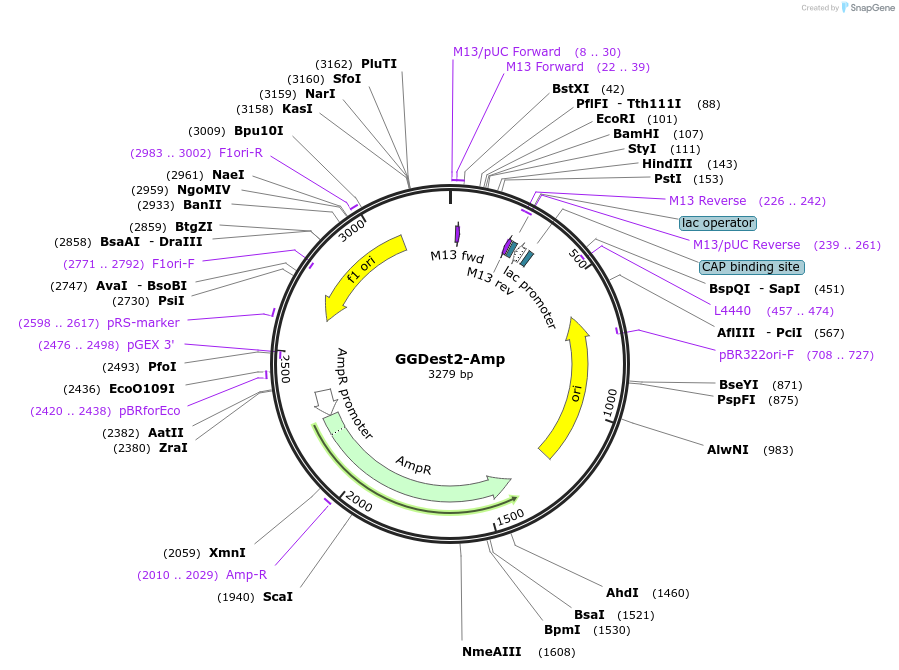

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 157650 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneV0120
- Backbone size (bp) 3280
-
Modifications to backboneV0120 was linearized with EcoRI and PstI. A dsOligo insert (BamHI, BbsI, BbsI, HindIII) with EcoRI and PstI overhangs was ligated into the V0120 backbone. V0120 (aka V0100) was derived from pUC19 (C. Ajo-Franklin, Pam Silver lab, Harvard).
-
Vector typeSynthetic Biology
- Promoter none
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer M13 forward (5'-GTAAAACGACGGCCAG)
- 3′ sequencing primer M13 reverse (5'-CAGGAAACAGCTATGAC) (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
The annotated sequence is also available at the Haynes lab Benchling site: https://benchling.com/s/seq-IBDVQps5oOZ1KXXrxxIx.
Please visit https://doi.org/10.17504/protocols.io.brgcm3sw for the protocol.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
GGDest2-Amp was a gift from Karmella Haynes (Addgene plasmid # 157650 ; http://n2t.net/addgene:157650 ; RRID:Addgene_157650) -
For your References section:
Rapid Single-Pot Assembly of Modular Chromatin Proteins for Epigenetic Engineering. Haynes KA, Priode JH. Methods Mol Biol. 2023;2599:191-214. doi: 10.1007/978-1-0716-2847-8_14. 10.1007/978-1-0716-2847-8_14 PubMed 36427151
