pAU002 - pTRE3G-CTCF(DELTA1-265)-mRuby2-CAGGS-rtta3G-Frt-PGK-PuroR-bpA-Frt TIGRE
(Plasmid #156429)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 156429 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone

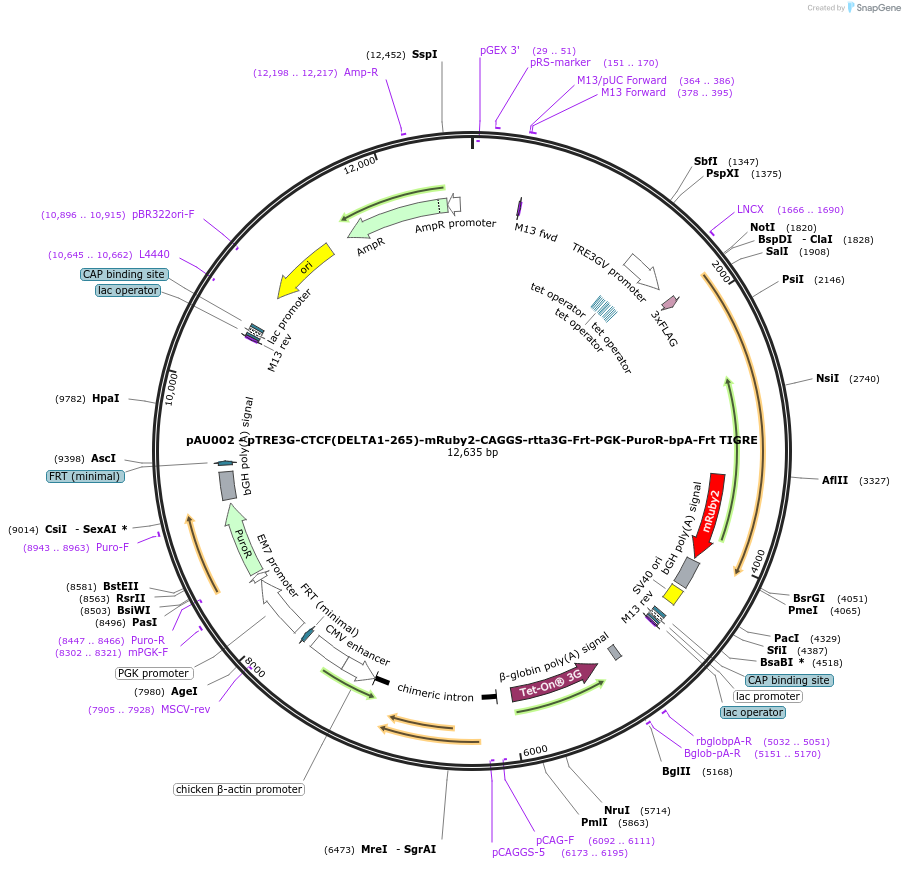

    pAU002 - pTRE3G-CTCF(DELTA1-265)-mRuby2-CAGGS-rtta3G-Frt-PGK-PuroR-bpA-Frt TIGRE.
  • Vector type
    Mammalian Expression, Mouse Targeting

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CTCF, rtta3G, TetO3G
  • Species
    M. musculus (mouse)
  • Mutation
    DELTA1-265
  • Entrez Gene
    Ctcf

Cloning Information

  • Cloning method Gibson Cloning

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAU002 - pTRE3G-CTCF(DELTA1-265)-mRuby2-CAGGS-rtta3G-Frt-PGK-PuroR-bpA-Frt TIGRE was a gift from Elphege Nora (Addgene plasmid # 156429 ; http://n2t.net/addgene:156429 ; RRID:Addgene_156429)

  • For your References section:

    Molecular basis of CTCF binding polarity in genome folding. Nora EP, Caccianini L, Fudenberg G, So K, Kameswaran V, Nagle A, Uebersohn A, Hajj B, Saux AL, Coulon A, Mirny LA, Pollard KS, Dahan M, Bruneau BG. Nat Commun. 2020 Nov 5;11(1):5612. doi: 10.1038/s41467-020-19283-x. 10.1038/s41467-020-19283-x PubMed 33154377
