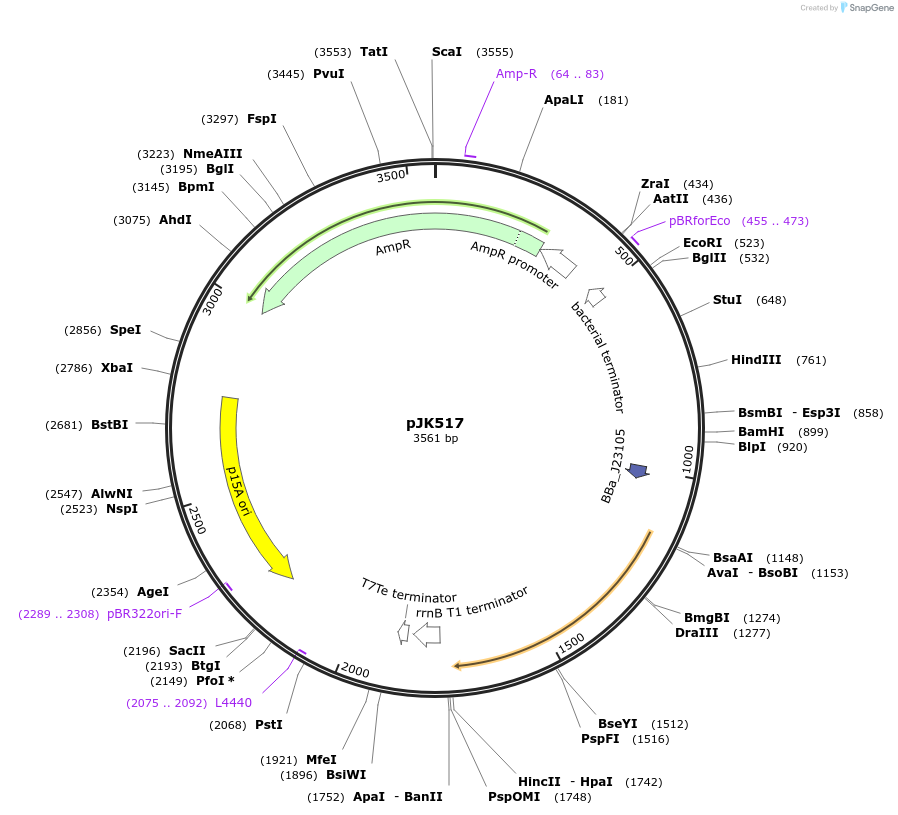

pJK517
(Plasmid #155385)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 155385 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    p15A
  • Total vector size (bp) 3569
  • Vector type
    Bacterial Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    PphlF-TA4 in dCas12a oscillator crRNAs
  • Species
    Synthetic
  • Insert Size (bp)
    1508

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJK517 was a gift from Pamela Silver (Addgene plasmid # 155385 ; http://n2t.net/addgene:155385 ; RRID:Addgene_155385)

  • For your References section:

    Toward a translationally independent RNA-based synthetic oscillator using deactivated CRISPR-Cas. Kuo J, Yuan R, Sanchez C, Paulsson J, Silver PA. Nucleic Acids Res. 2020 Aug 20;48(14):8165-8177. doi: 10.1093/nar/gkaa557. 10.1093/nar/gkaa557 PubMed 32609820
