pROF394
(Plasmid
#155333)
-
PurposeExpression of PULSE-controlled LFY-VP16-2A-RLuc
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 155333 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepKM081
-
Vector typeSynthetic Biology ; Eukaryotic Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)DH5alpha
-
Growth instructionsThe operator repetitions can be lost after bacterial propagation. It is recommended to grow the bacteria at 30°C and sequence the repeats after new DNA preparations.
-
Copy numberUnknown
Gene/Insert
-

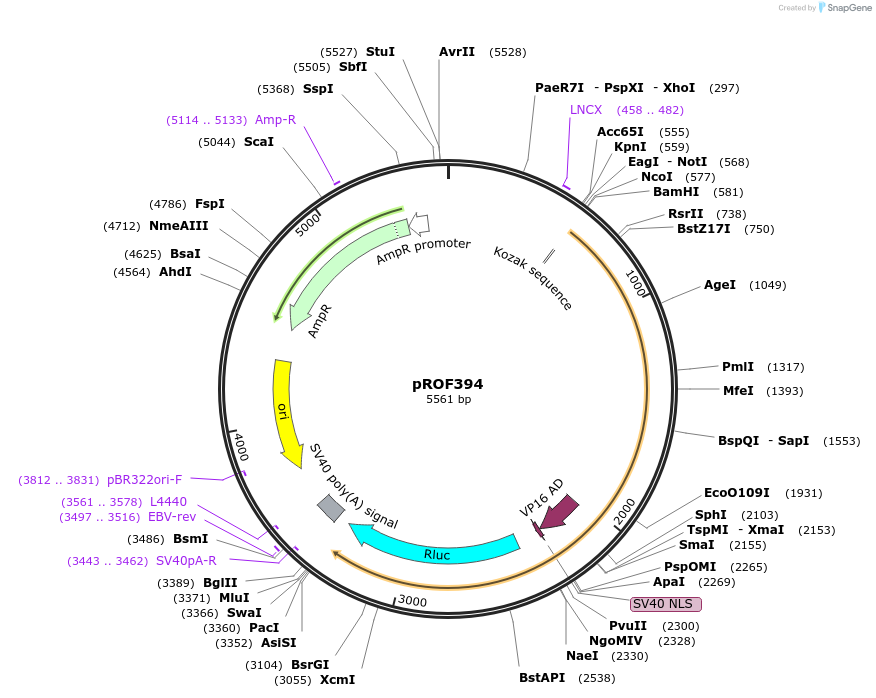

Gene/Insert name(etr)8-(C120)5-PhCMVmin-LFY-VP16-NLS-2A-RLuc-TSV40
-
SpeciesSynthetic
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer Amp-R
- 3′ sequencing primer SV40pA-R; pBR322ori-F (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pROF394 was a gift from Matias Zurbriggen (Addgene plasmid # 155333 ; http://n2t.net/addgene:155333 ; RRID:Addgene_155333) -
For your References section:
Optogenetic control of gene expression in plants in the presence of ambient white light. Ochoa-Fernandez R, Abel NB, Wieland FG, Schlegel J, Koch LA, Miller JB, Engesser R, Giuriani G, Brandl SM, Timmer J, Weber W, Ott T, Simon R, Zurbriggen MD. Nat Methods. 2020 Jul;17(7):717-725. doi: 10.1038/s41592-020-0868-y. Epub 2020 Jun 29. 10.1038/s41592-020-0868-y PubMed 32601426
