Addgene

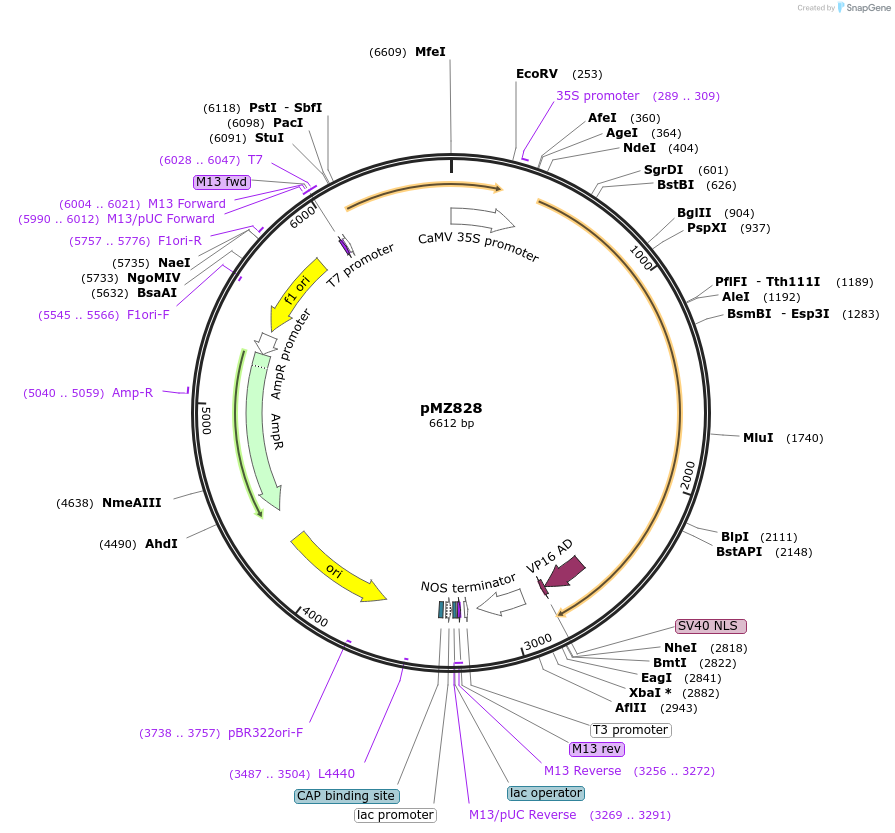

pMZ828
(Plasmid #155322)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 155322 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pGEN016
  • Vector type
    Plant Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    PCaMV35S-PhyB(1-650)-VP16-NLS-Tnos
  • Species
    Synthetic

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer M13/pUC Forward; T7
  • 3′ sequencing primer M13/pUC Reverse; T3
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

This plasmid was originally published in: Müller, K. et al. A red light-controlled synthetic gene expression switch for plant systems. Mol. Biosyst. 10, 1679–1688 (2014).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMZ828 was a gift from Matias Zurbriggen (Addgene plasmid # 155322 ; http://n2t.net/addgene:155322 ; RRID:Addgene_155322)

  • For your References section:

    Optogenetic control of gene expression in plants in the presence of ambient white light. Ochoa-Fernandez R, Abel NB, Wieland FG, Schlegel J, Koch LA, Miller JB, Engesser R, Giuriani G, Brandl SM, Timmer J, Weber W, Ott T, Simon R, Zurbriggen MD. Nat Methods. 2020 Jul;17(7):717-725. doi: 10.1038/s41592-020-0868-y. Epub 2020 Jun 29. 10.1038/s41592-020-0868-y PubMed 32601426
