Addgene

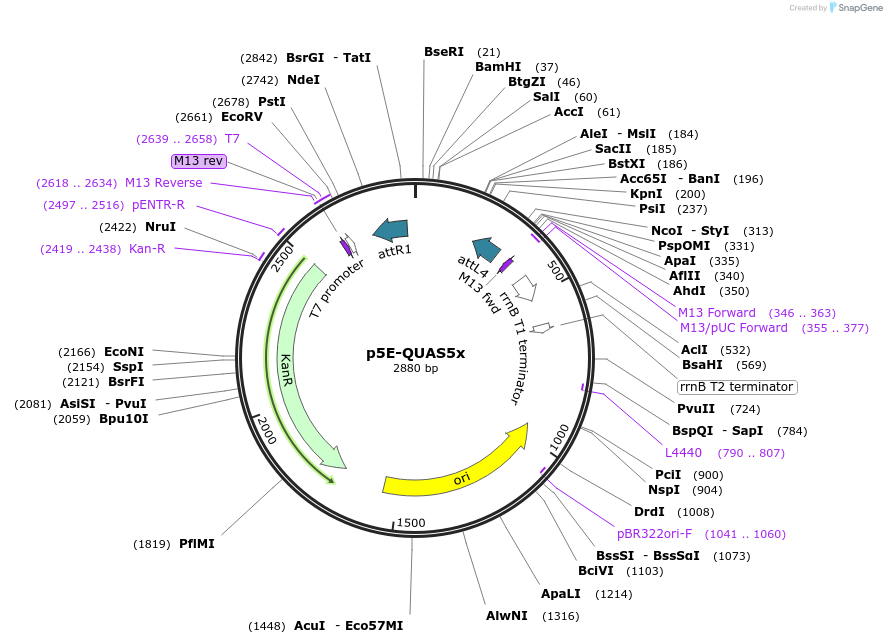

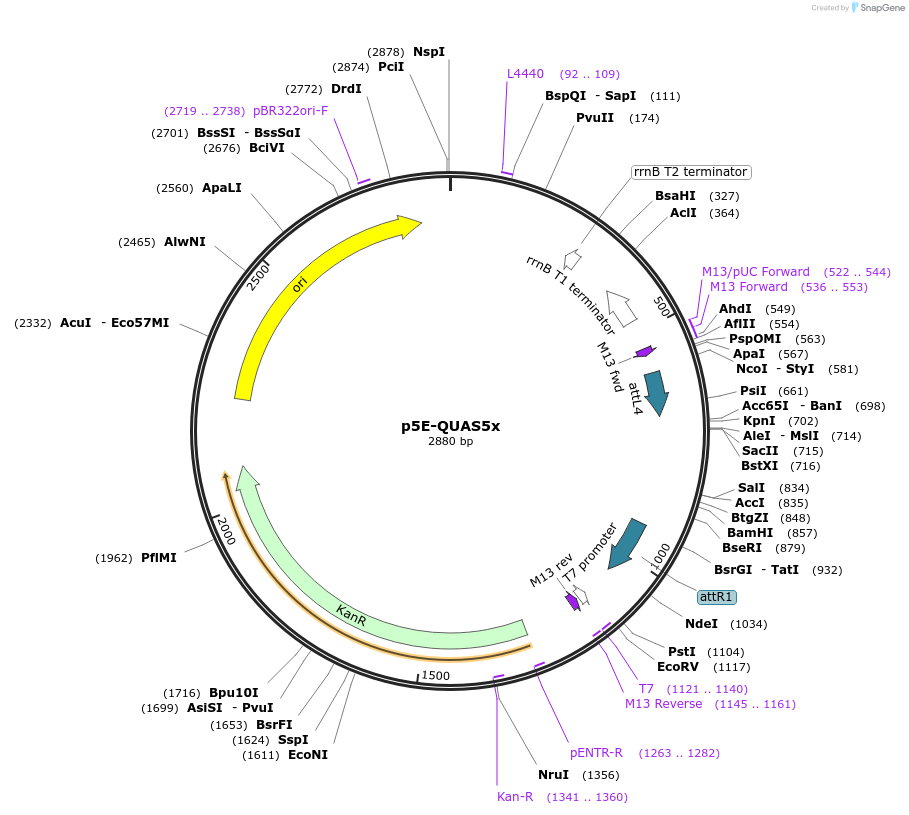

p5E-QUAS5x
(Plasmid #155113)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 155113 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pDONRP4-P1R
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 2643
  • Total vector size (bp) 2880
  • Vector type
    Gateway 5' entry vector

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    QUAS5x
  • Species
    Synthetic
  • Insert Size (bp)
    237
  • Promoter QUAS5x-E1b

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site BsrGI (not destroyed)
  • 5′ sequencing primer CAC GAC GTT GTA AAA CGA C
  • 3′ sequencing primer CAG GAA ACA GCT ATG AC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Can be recombined with pME and p3E vectors to make a QFGal4-dependent reporter construct.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p5E-QUAS5x was a gift from Bret Pearson (Addgene plasmid # 155113 ; http://n2t.net/addgene:155113 ; RRID:Addgene_155113)

  • For your References section:

    An optimized QF-binary expression system for use in zebrafish. Burgess J, Burrows JT, Sadhak R, Chiang S, Weiss A, D'Amata C, Molinaro AM, Zhu S, Long M, Hu C, Krause HM, Pearson BJ. Dev Biol. 2020 Jul 19. pii: S0012-1606(20)30202-5. doi: 10.1016/j.ydbio.2020.07.007. 10.1016/j.ydbio.2020.07.007 PubMed 32697972
