pLCHKO
(Plasmid
#155048)
-
Purpose(Empty Backbone) Lentiviral backbone for cloning and expressing U6 driven hybrid guide (hg)RNAs with BfuAI cloning sites and puromycin selection.
-
Depositing Labs
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 155048 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

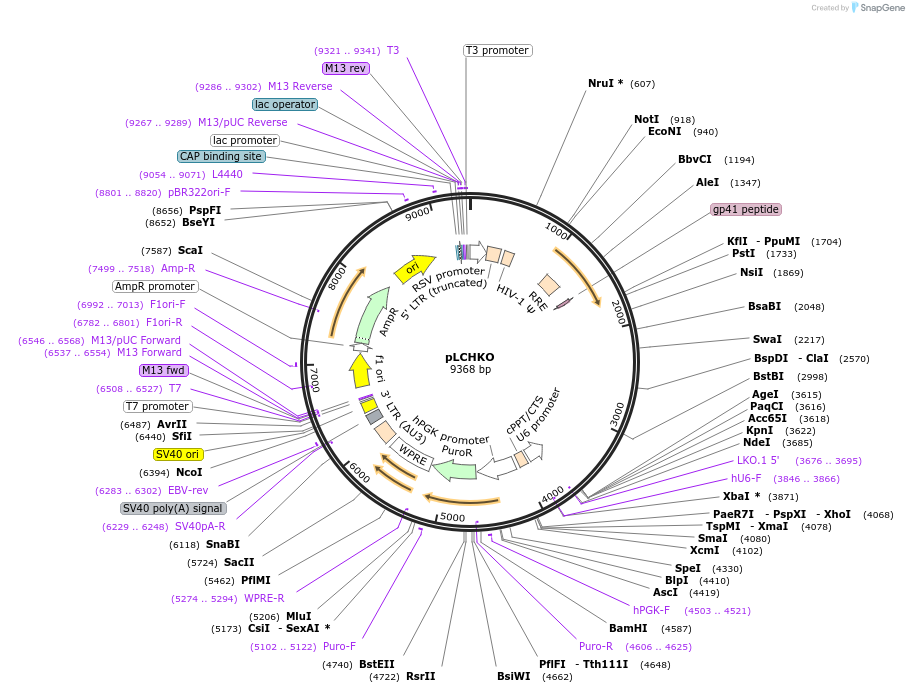

Backbone
-
Vector backbonepLCKO (Addgene plasmid # 73311)
- Backbone size (bp) 9371
-
Vector typeMammalian Expression, Lentiviral, CRISPR
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
U6-driven hgRNA cassette is encoded on the anti-sense strand. The empty vector backbone contains a 1,870bp stuffer sequence that is replaced with an hgRNA insert during a 2-step guide cloning process.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLCHKO was a gift from Benjamin Blencowe & Jason Moffat (Addgene plasmid # 155048 ; http://n2t.net/addgene:155048 ; RRID:Addgene_155048) -
For your References section:
Genetic interaction mapping and exon-resolution functional genomics with a hybrid Cas9-Cas12a platform. Gonatopoulos-Pournatzis T, Aregger M, Brown KR, Farhangmehr S, Braunschweig U, Ward HN, Ha KCH, Weiss A, Billmann M, Durbic T, Myers CL, Blencowe BJ, Moffat J. Nat Biotechnol. 2020 May;38(5):638-648. doi: 10.1038/s41587-020-0437-z. Epub 2020 Mar 16. 10.1038/s41587-020-0437-z PubMed 32249828
