DinoIII-pat
(Plasmid #155028)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 155028 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

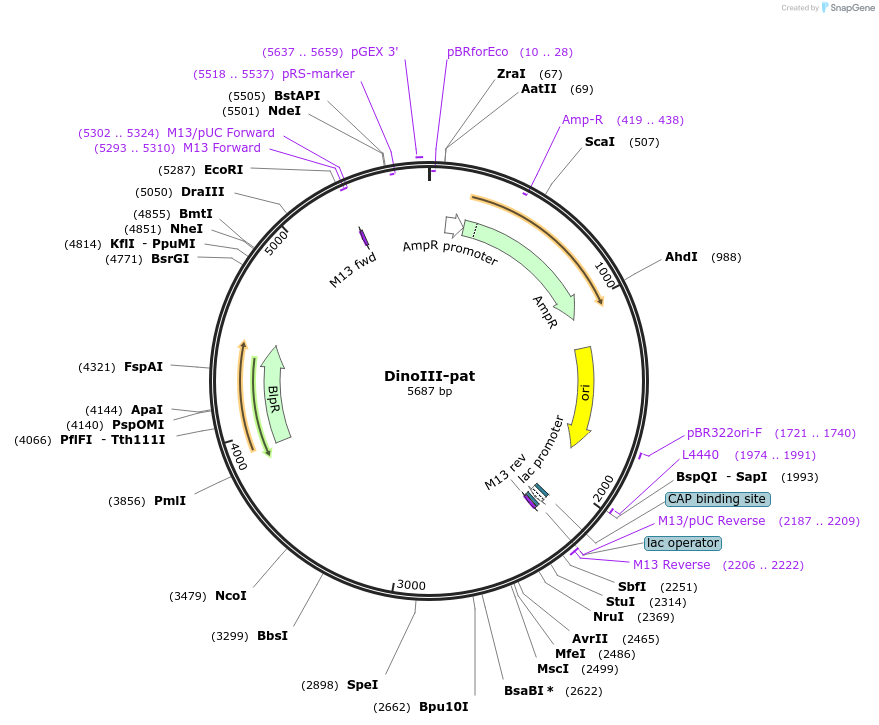

Backbone

  • Vector backbone
    pMDTM19 T-Vector
  • Backbone manufacturer
    Takara
  • Backbone size w/o insert (bp) 3140
  • Total vector size (bp) 5687
  • Modifications to backbone
    Inserted a dinoflagellate expression system
  • Vector type
    Bacterial Expression
  • Selectable markers
    Basta

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Phosphinothricin N-acetyltransferase
  • Alt name
    PAT
  • Insert Size (bp)
    552

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XbaI (destroyed during cloning)
  • 3′ cloning site BglII (destroyed during cloning)
  • 5′ sequencing primer M13R
  • 3′ sequencing primer M13F
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    DinoIII-pat was a gift from Senjie Lin (Addgene plasmid # 155028 ; http://n2t.net/addgene:155028 ; RRID:Addgene_155028)

  • For your References section:

    Genetic tool development in marine protists: emerging model organisms for experimental cell biology. Faktorova D, Nisbet RER, Fernandez Robledo JA, Casacuberta E, Sudek L, Allen AE, Ares M Jr, Areste C, Balestreri C, Barbrook AC, Beardslee P, Bender S, Booth DS, Bouget FY, Bowler C, Breglia SA, Brownlee C, Burger G, Cerutti H, Cesaroni R, Chiurillo MA, Clemente T, Coles DB, Collier JL, Cooney EC, Coyne K, Docampo R, Dupont CL, Edgcomb V, Einarsson E, Elustondo PA, Federici F, Freire-Beneitez V, Freyria NJ, Fukuda K, Garcia PA, Girguis PR, Gomaa F, Gornik SG, Guo J, Hampl V, Hanawa Y, Haro-Contreras ER, Hehenberger E, Highfield A, Hirakawa Y, Hopes A, Howe CJ, Hu I, Ibanez J, Irwin NAT, Ishii Y, Janowicz NE, Jones AC, Kachale A, Fujimura-Kamada K, Kaur B, Kaye JZ, Kazana E, Keeling PJ, King N, Klobutcher LA, Lander N, Lassadi I, Li Z, Lin S, Lozano JC, Luan F, Maruyama S, Matute T, Miceli C, Minagawa J, Moosburner M, Najle SR, Nanjappa D, Nimmo IC, Noble L, Novak Vanclova AMG, Nowacki M, Nunez I, Pain A, Piersanti A, Pucciarelli S, Pyrih J, Rest JS, Rius M, Robertson D, Ruaud A, Ruiz-Trillo I, Sigg MA, Silver PA, Slamovits CH, Jason Smith G, Sprecher BN, Stern R, Swart EC, Tsaousis AD, Tsypin L, Turkewitz A, Turnsek J, Valach M, Verge V, von Dassow P, von der Haar T, Waller RF, Wang L, Wen X, Wheeler G, Woods A, Zhang H, Mock T, Worden AZ, Lukes J. Nat Methods. 2020 May;17(5):481-494. doi: 10.1038/s41592-020-0796-x. Epub 2020 Apr 6. 10.1038/s41592-020-0796-x PubMed 32251396
