pCS2+-PIF6-EGFP
(Plasmid
#154913)
-
Purpose1-100 amino acids of Arabidopsis PIF6 (Gene ID: 825382), tagged with EGFP fluorescent protein. Mammalian codon optimised.
-
Depositing Labs
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 154913 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

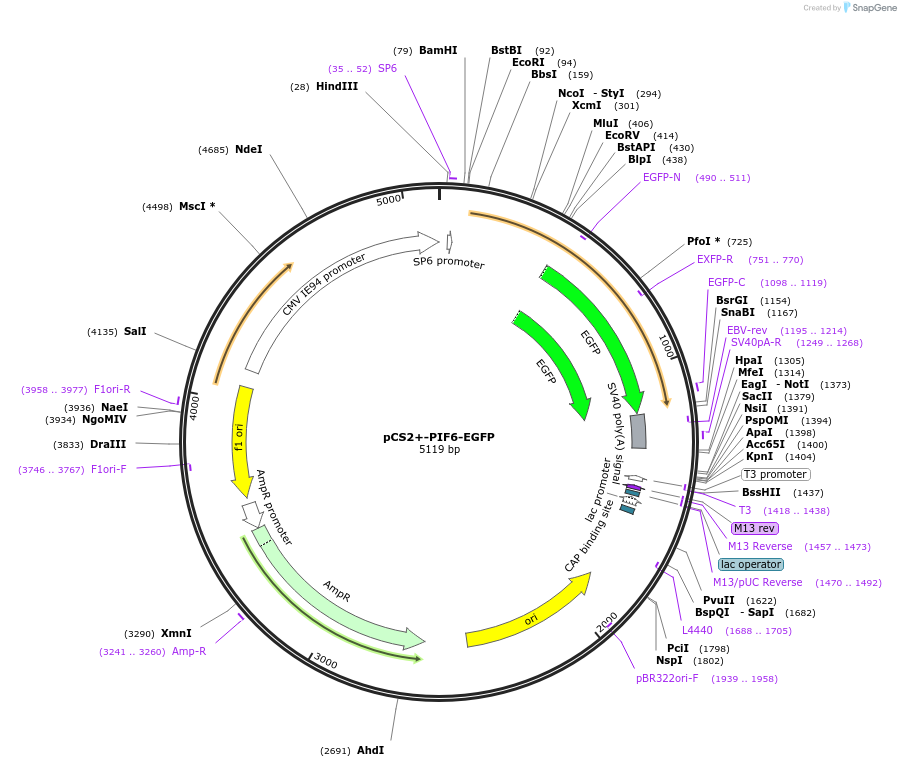

Backbone
-
Vector backbonepCS2+
-
Backbone manufacturerRZPD
- Backbone size w/o insert (bp) 4095
- Total vector size (bp) 5122
-
Vector typeMammalian Expression ; xenopus/avian/zebrafish
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namephytochrome interacting factor 3-like 2
-
Alt namePIF6, PIL2
-
SpeciesA. thaliana (mustard weed)
-
Insert Size (bp)1056
-
Mutation1-100 amino acids of Arabidopsis PIF6
-
GenBank ID825382
-
Entrez GenePIL2 (a.k.a. AT3G62090, PHYTOCHROME-INTERACTING FACTOR 6, PIF6, phytochrome interacting factor 3-like 2)
- Promoter CMV
-
Tag
/ Fusion Protein
- EGFP (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer SP6 Forward ATTTAGGTGACACTATAG
- 3′ sequencing primer M13 Reverse GGAAACAGCTATGACCATG, T3 Forward AATTAACCCTCACTAAAGGG (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCS2+-PIF6-EGFP was a gift from Clare Buckley & Jonathan Clarke (Addgene plasmid # 154913 ; http://n2t.net/addgene:154913 ; RRID:Addgene_154913) -
For your References section:
Reversible Optogenetic Control of Subcellular Protein Localization in a Live Vertebrate Embryo. Buckley CE, Moore RE, Reade A, Goldberg AR, Weiner OD, Clarke JD. Dev Cell. 2016 Jan 11;36(1):117-26. doi: 10.1016/j.devcel.2015.12.011. 10.1016/j.devcel.2015.12.011 PubMed 26766447
