pMS81(rpl-28p::mKate2::unc-54 3'UTR::LoxP::rps-0p::HYGR∆)
(Plasmid
#154840)
-
PurposeInsertion of rpl-28p::mKate2::unc-54 3'UTR into a split hygromycin landing pad. Can be modified to insert a different gene(s) of interest.
-
Depositing Lab
-

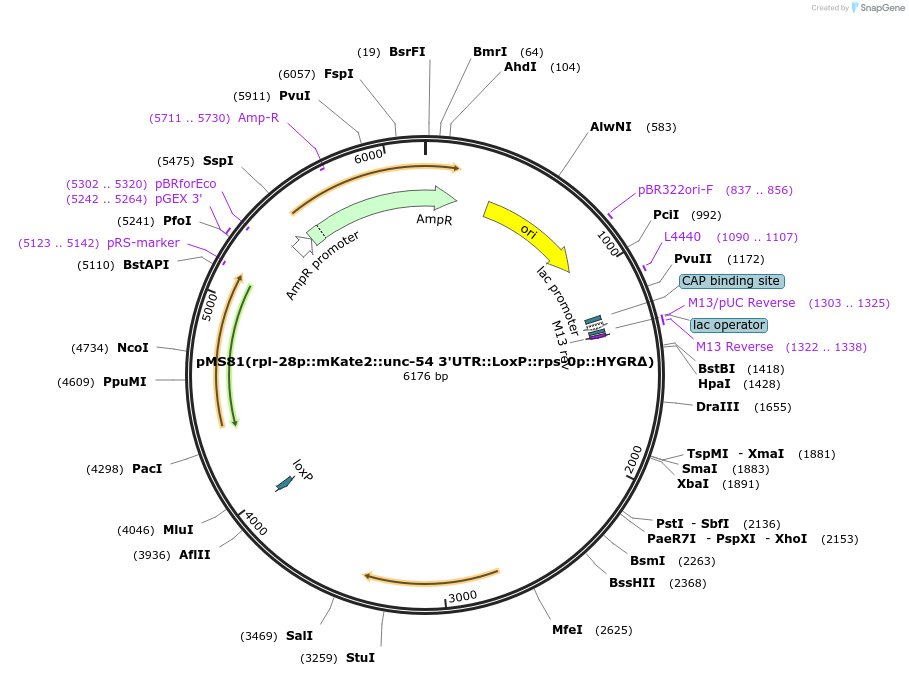

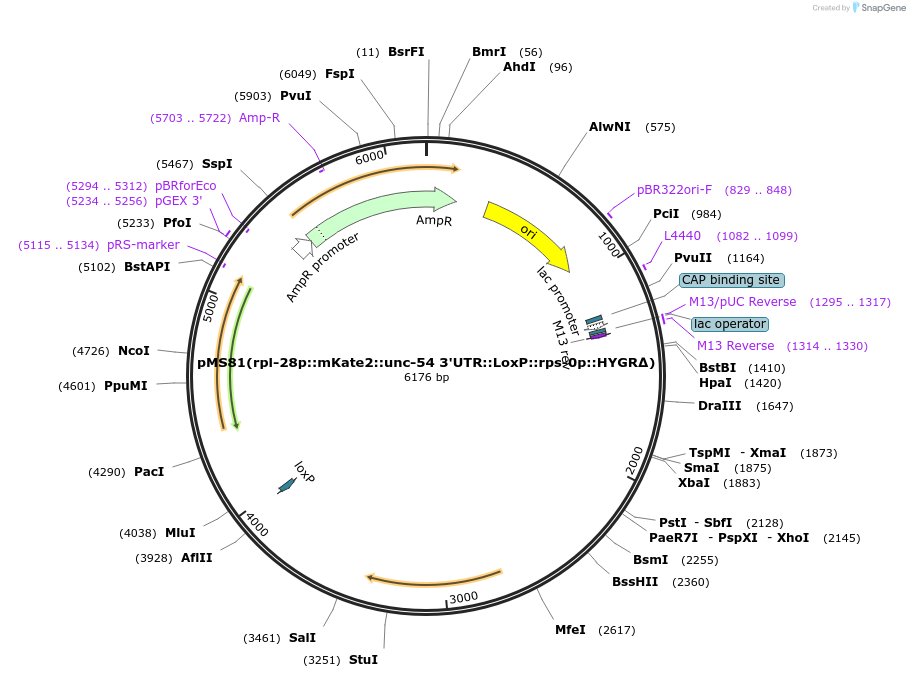

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 154840 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepUC57
- Backbone size w/o insert (bp) 2470
- Total vector size (bp) 6176
-
Vector typeWorm Expression, Cre/Lox, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namehomology arm:rpl-28p::mKate2::unc-54 3'UTR::LoxP::rps-0p::HYGR∆
-
SpeciesC. elegans (nematode), Synthetic
-
MutationHYGR∆ encodes aa 1-226
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer caggaaacagctatgac (M13-rev)
- 3′ sequencing primer Ctatgcggcatcagagcagatt (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byrpl-28p is from pBCN39-R4R3. mKate2 coding sequence and unc-54 3’UTR is from pDD285. The hygromycin resistance gene fragment was modified from pCFJ1663. All three plasmids were obtained from Addgene. All remaining insert sequences were from C. elegans genomic DNA or were synthesized for our lab.
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
The LoxP site has a point mutation that in our hands does not noticeably impact function.
The rpl-28p::mKate2::unc-54 3'UTR transgene is flanked by restriction sites to facilitate removal and replacement of this gene.
Additional protocol information can be found at: github.com/phillips-lab/SLP
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pMS81(rpl-28p::mKate2::unc-54 3'UTR::LoxP::rps-0p::HYGR∆) was a gift from Patrick Phillips (Addgene plasmid # 154840 ; http://n2t.net/addgene:154840 ; RRID:Addgene_154840) -
For your References section:
Rapid Self-Selecting and Clone-Free Integration of Transgenes into Engineered CRISPR Safe Harbor Locations in Caenorhabditis elegans. Stevenson ZC, Moerdyk-Schauwecker MJ, Jamison B, Phillips PC. G3 (Bethesda). 2020 Aug 19. pii: g3.120.401400. doi: 10.1534/g3.120.401400. 10.1534/g3.120.401400 PubMed 32816924
