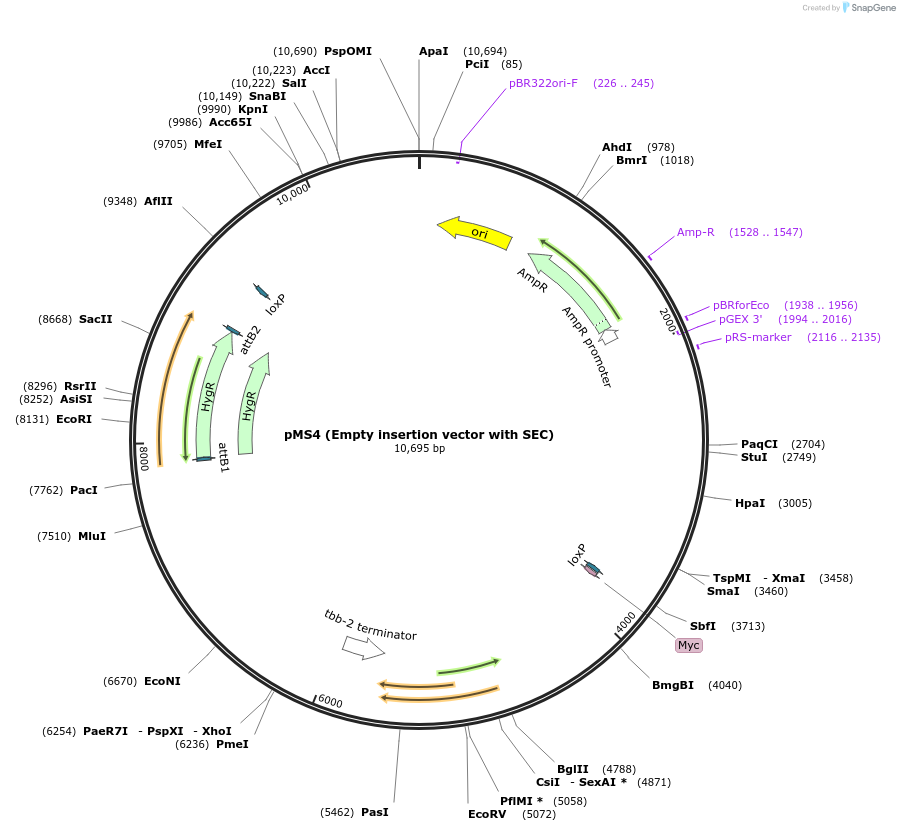

pMS4 (Empty insertion vector with SEC)
(Plasmid #154837)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 154837 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pCFJ151
  • Backbone size w/o insert (bp) 5049
  • Total vector size (bp) 10695
  • Modifications to backbone
    Deletion of Cbr-unc-119 rescue gene and a portion of the homology arm containing the targeted guide site.
  • Vector type
    Worm Expression, Cre/Lox, CRISPR
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SEC
  • Alt name
    sqt-1(d)::hsCre::hygR
  • Species
    C. elegans (nematode), Synthetic
  • Insert Size (bp)
    5623
  • Mutation
    sqt-1(e1350)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer gcccaggagaacacgttag
  • 3′ sequencing primer Gcttatctcgaatgagacccttg
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    The vector backbone (pCFJ151) and the SEC insert (from pDD285) were received from Addgene

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Additional protocol information can be found at: github.com/phillips-lab/SLP

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMS4 (Empty insertion vector with SEC) was a gift from Patrick Phillips (Addgene plasmid # 154837 ; http://n2t.net/addgene:154837 ; RRID:Addgene_154837)
  • For your References section:

    Rapid Self-Selecting and Clone-Free Integration of Transgenes into Engineered CRISPR Safe Harbor Locations in Caenorhabditis elegans. Stevenson ZC, Moerdyk-Schauwecker MJ, Jamison B, Phillips PC. G3 (Bethesda). 2020 Aug 19. pii: g3.120.401400. doi: 10.1534/g3.120.401400. 10.1534/g3.120.401400 PubMed 32816924
