pEPYC1CB0436
(Plasmid
#154695)
-
PurposeMoClo Level 1 luciferase reporter
-
Depositing Lab
-

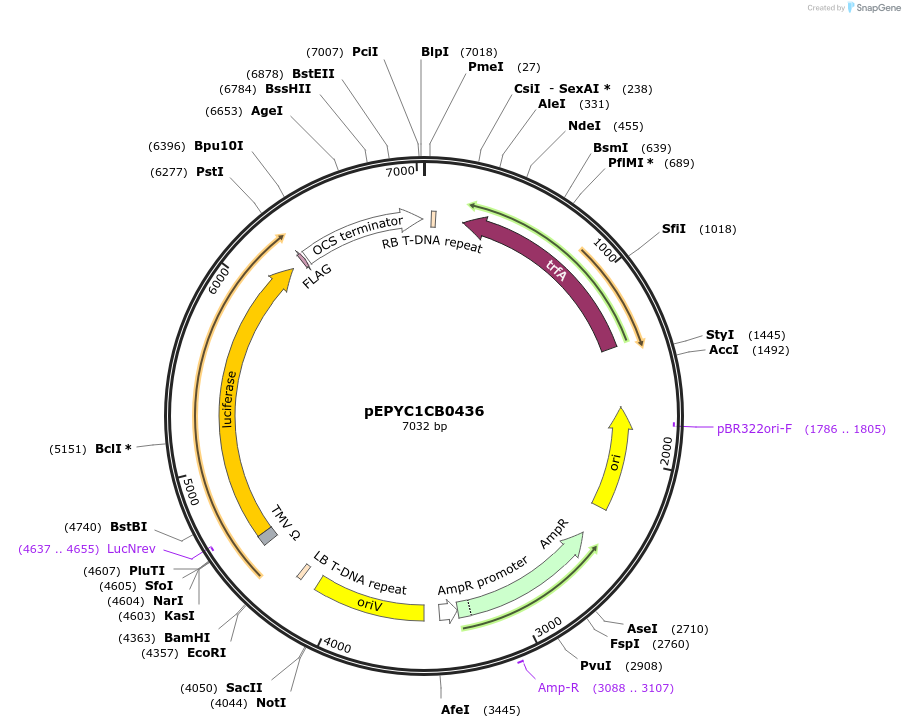

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 154695 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepICH47732
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameMinSyn_017 Firefly luciferase expression cassette [MinSyn_017::TMV::LucF::Flag::ocsT]
-
SpeciesSynthetic
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsaI (destroyed during cloning)
- 3′ cloning site BsaI (destroyed during cloning)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/2020.05.14.095406v1 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEPYC1CB0436 was a gift from Nicola Patron (Addgene plasmid # 154695 ; http://n2t.net/addgene:154695 ; RRID:Addgene_154695) -
For your References section:
Rational design of minimal synthetic promoters for plants. Cai YM, Kallam K, Tidd H, Gendarini G, Salzman A, Patron NJ. Nucleic Acids Res. 2020 Aug 28. pii: 5897334. doi: 10.1093/nar/gkaa682. 10.1093/nar/gkaa682 PubMed 32856047
