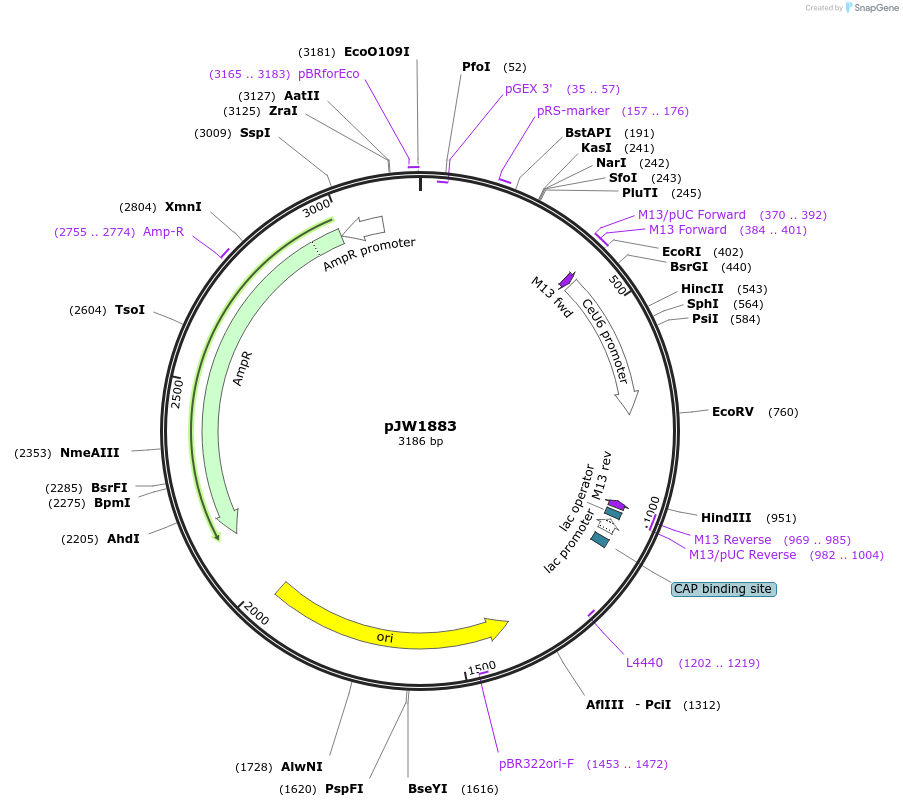

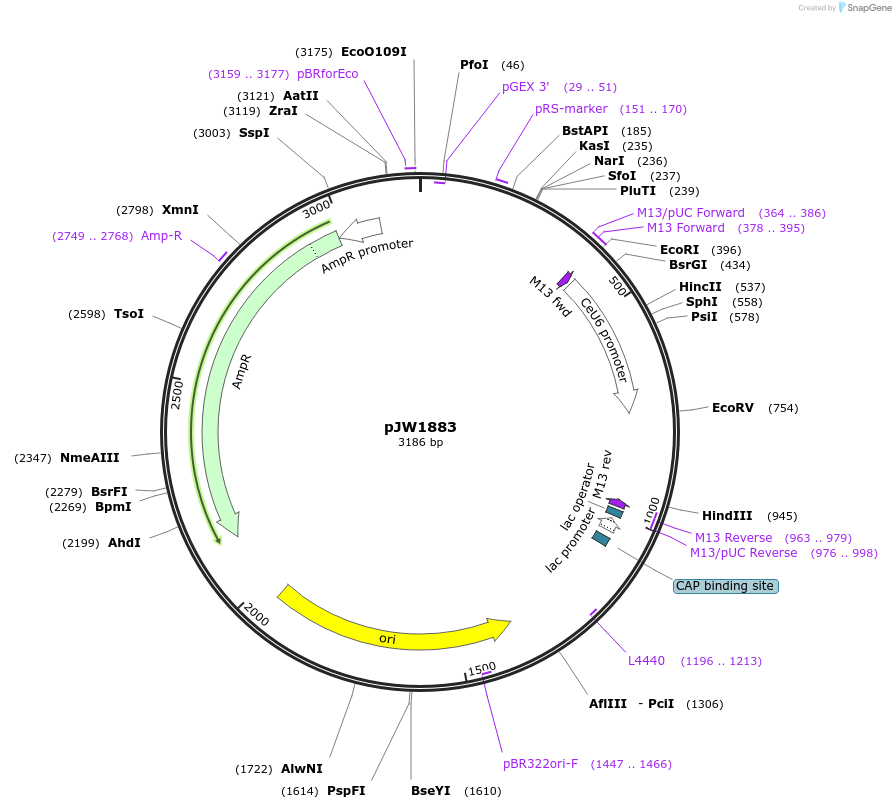

pJW1883
(Plasmid #154331)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 154331 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pJW1839
  • Backbone size w/o insert (bp) 3500
  • Vector type
    Worm Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ttTi5605 site targeting sgRNA (F+E) with R07E5.16 U6 promoter and 3'UTR
  • Species
    C. elegans (nematode), Synthetic
  • Insert Size (bp)
    20
  • Mutation
    F+E mutations in sgRNA

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer M13 Forward (tgtaaaacgacggccagt)
  • 3′ sequencing primer M13 Reverse (caggaaacagctatgaccatg)
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Cloning by SapTrap

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJW1883 was a gift from Jordan Ward (Addgene plasmid # 154331 ; http://n2t.net/addgene:154331 ; RRID:Addgene_154331)

  • For your References section:

    An expanded auxin-inducible degron toolkit for Caenorhabditis elegans. Ashley GE, Duong T, Levenson MT, Martinez MAQ, Johnson LC, Hibshman JD, Saeger HN, Palmisano NJ, Doonan R, Martinez-Mendez R, Davidson BR, Zhang W, Ragle JM, Medwig-Kinney TN, Sirota SS, Goldstein B, Matus DQ, Dickinson DJ, Reiner DJ, Ward JD. Genetics. 2021 Mar 31;217(3). pii: 6104563. doi: 10.1093/genetics/iyab006. 10.1093/genetics/iyab006 PubMed 33677541
