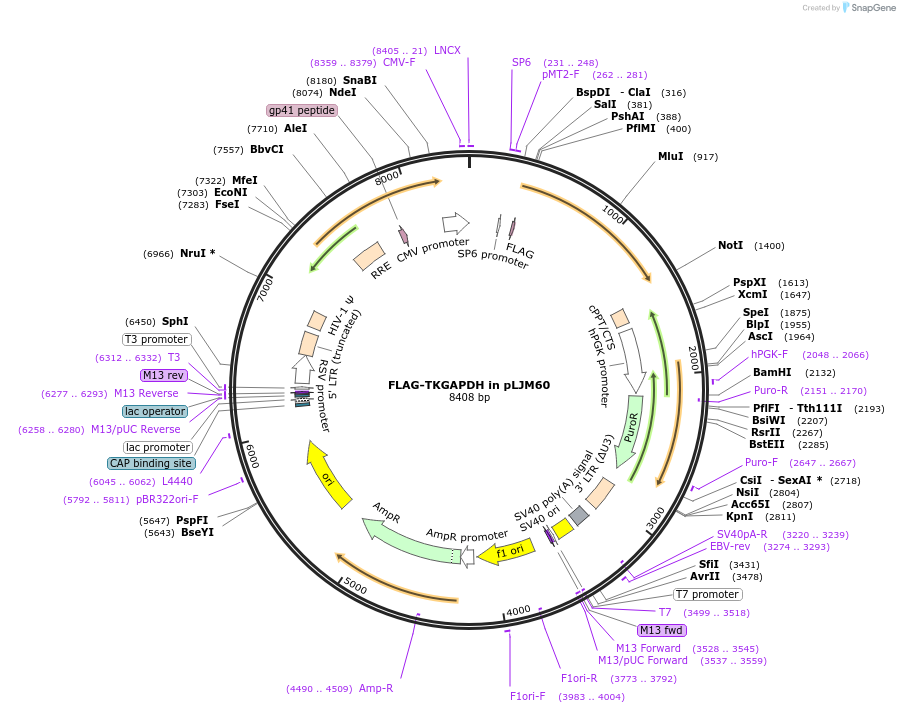

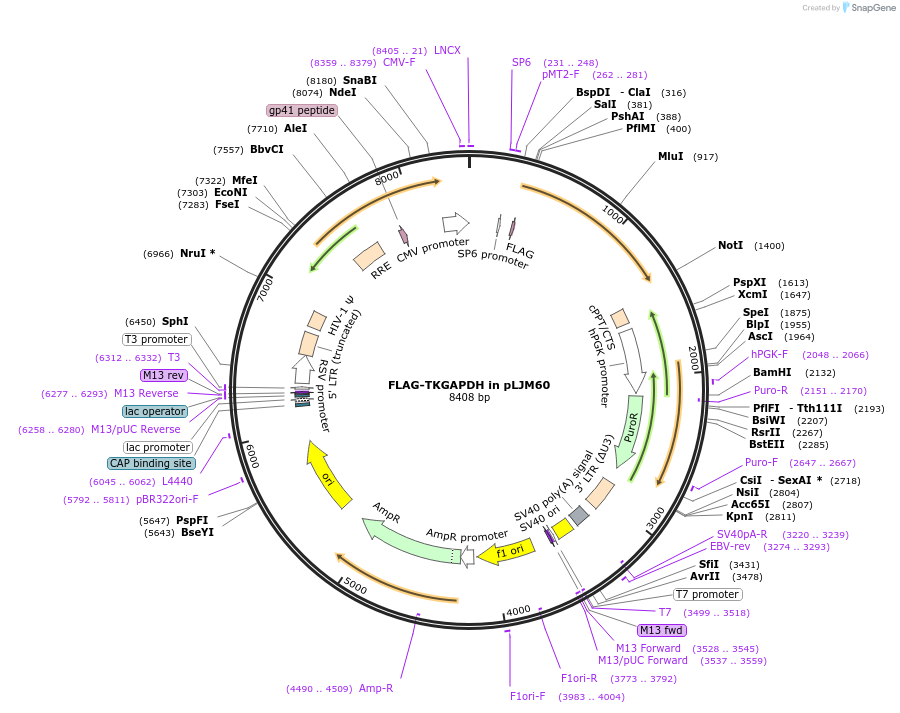

FLAG-TKGAPDH in pLJM60
(Plasmid #154217)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 154217 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLJM60
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GAPDH
  • Species
    T. Koninga
  • Insert Size (bp)
    1011
  • Mutation
    cDNA has been codon optimized for human cell expression
  • Promoter CMV
  • Tag / Fusion Protein
    • FLAG (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SalI (destroyed during cloning)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer ATTTAGGTGACACTATAG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    FLAG-TKGAPDH in pLJM60 was a gift from David Sabatini (Addgene plasmid # 154217 ; http://n2t.net/addgene:154217 ; RRID:Addgene_154217)

  • For your References section:

    Dihydroxyacetone phosphate signals glucose availability to mTORC1. Orozco JM, Krawczyk PA, Scaria SM, Cangelosi AL, Chan SH, Kunchok T, Lewis CA, Sabatini DM. Nat Metab. 2020 Sep;2(9):893-901. doi: 10.1038/s42255-020-0250-5. Epub 2020 Jul 27. 10.1038/s42255-020-0250-5 PubMed 32719541
