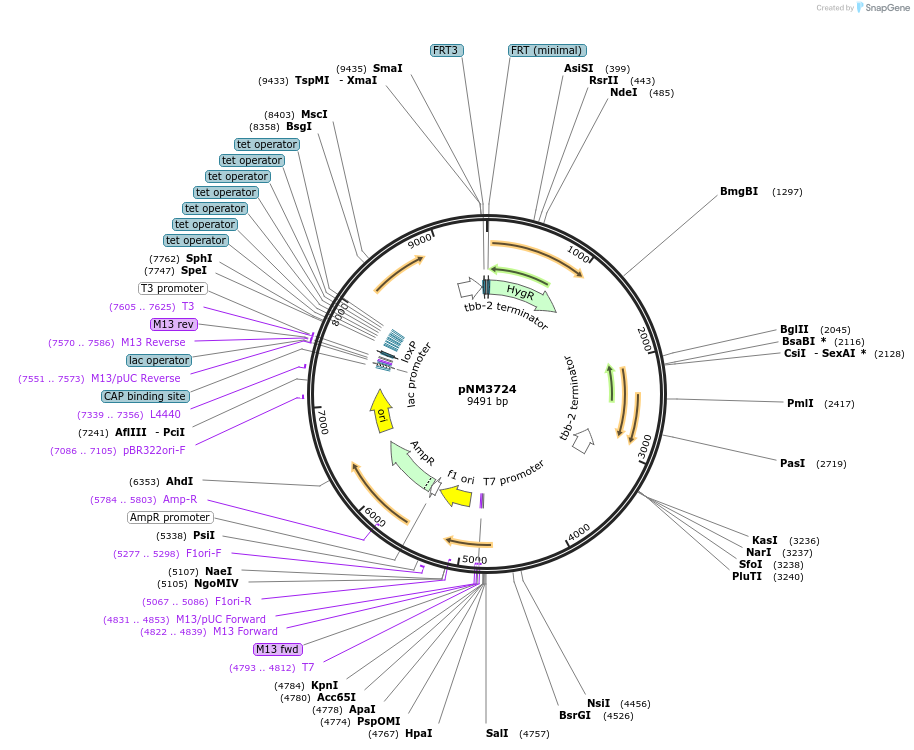

pNM3724
(Plasmid #154112)

• Purpose: tetO 7X ∆pes-10 promoter driving GFP-C1 in an RCME vector
• Depositing Lab: Michael Nonet
• Publication: Nonet et al Genetics. 2020 Jun 8. pii: genetics.120.303388. doi: 10.1534/genetics.120.303388.

Backbone

• Vector backbone: pLF3FShC
• Backbone manufacturer: Addgene #153083
• Backbone size w/o insert (bp): 7855
• Total vector size (bp): 9491
• Modifications to backbone: none
• Vector type: Worm Expression ; RMCE
• Selectable markers: Hygromycin

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: tetO 7X::∆pes-10::GFP-C1::tbb-2 3'
• Species: C. elegans (nematode), Synthetic
• Insert Size (bp): 1787
• Promoter: not applicable

Cloning Information

• Cloning method: Unknown
• 5′ sequencing primer: not applicable

Resource Information

• Supplemental Documents:
  • pNM3724.gb
• A portion of this plasmid was derived from a plasmid made by: The insert was added using a multi-fragment Golden Gate reaction with tetO 7X ∆pes-10 from Addgene #122613, GFP-C1 from Addgene #91824, and tbb-2 3' UTR coming from amplified genomic sequences .

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
