Purpose(Empty Backbone) RMCE integration vector with self excising cassette
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 153083 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepBluescript II SK (+)
-
Backbone manufacturerStratagene Cloning Systems
-

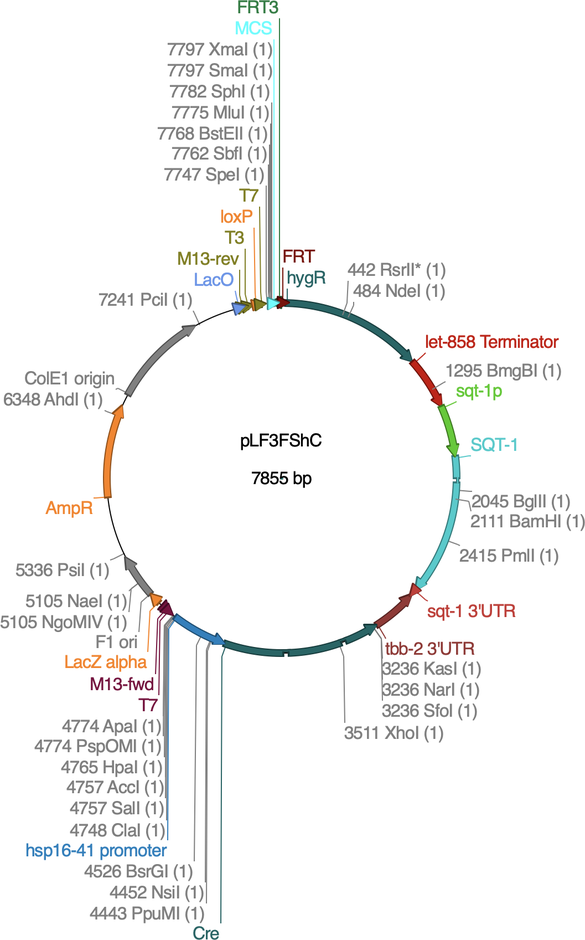

Modifications to backbone1) Removal of SapI site in pBluescript II SK (+), 2) Addition of a loxP site, MCS, FRT3 site, FRT site, hygromycin resistance gene, let-858 3' UTR, sqt-1(e1350) gene, hsp-16.41 promoter, Cre recombinase gene, and tbb-2 3' UTR, all via multi-insert Golden Gate Assembly 3) insertion of two SapI sites in MCS.
-
Vector typeWorm Expression ; Recombination Mediated Cassette Exchange
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made bySome component parts were obtained from other plasmids. Specifically, the hygR gene, sqt-1(e1350) gene, hsp-16-41 promoter, let-858 and tbb-2 3' UTR were all PCR amplified from Addgene #91829 made by Daniel Dickinson in Bob Goldstein's lab
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLF3FShC was a gift from Michael Nonet (Addgene plasmid # 153083 ; http://n2t.net/addgene:153083 ; RRID:Addgene_153083) -
For your References section:
Efficient Transgenesis in Caenorhabditis elegans Using Flp Recombinase-Mediated Cassette Exchange. Nonet ML. Genetics. 2020 Jun 8. pii: genetics.120.303388. doi: 10.1534/genetics.120.303388. 10.1534/genetics.120.303388 PubMed 32513816
