vPyACR_2164382
(Plasmid #153029)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 153029 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

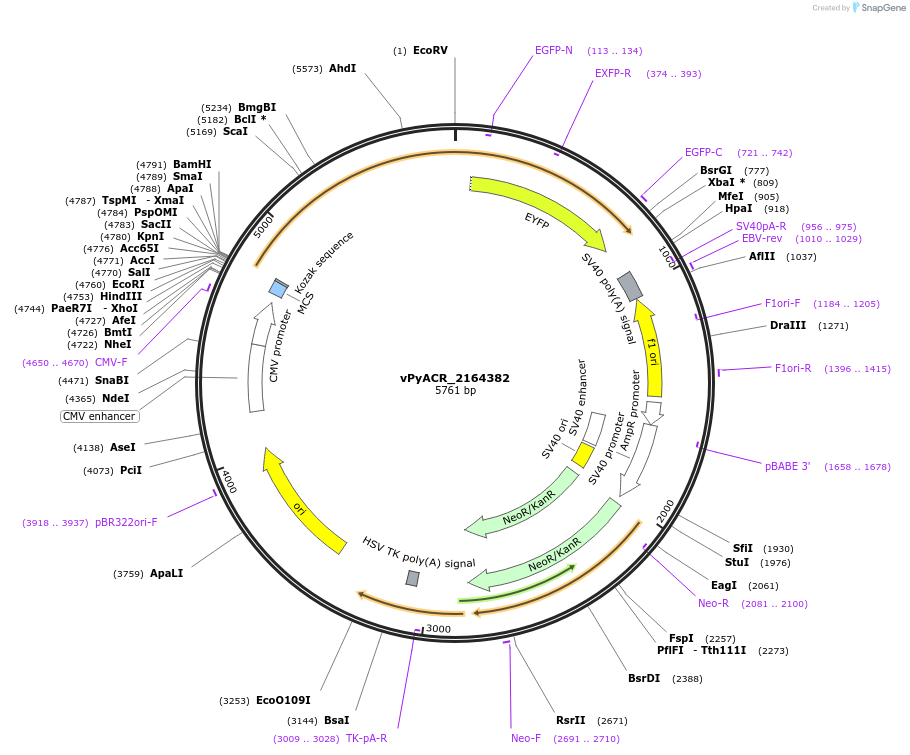

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone size w/o insert (bp) 3980
  • Total vector size (bp) 5761
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    vPyACR_2164382
  • Species
    Synthetic; Marine Giant Virus
  • Insert Size (bp)
    837
  • Mutation
    vPyACR_2164382 was C-terminally truncated to include only the transmembrane region. eYFP is flanked by a membrane trafficking signal and an ER release signal N- and C-terminally, respectively.
  • GenBank ID
    MT353684
  • Promoter CMV (+ enhancer)
  • Tag / Fusion Protein
    • eYFP (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CMV-fwd: GCAAATGGGCGGTAGGCGT or EGFP-N1-fwd: GAGGTCTATATAAGCAGAGC
  • 3′ sequencing primer EGFP-C1-rev: AACCATTATAAGCTGCAATAAAC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    vPyACR_2164382 was a gift from Peter Hegemann (Addgene plasmid # 153029 ; http://n2t.net/addgene:153029 ; RRID:Addgene_153029)

  • For your References section:

    Lateral Gene Transfer of Anion-Conducting Channelrhodopsins between Green Algae and Giant Viruses. Rozenberg A, Oppermann J, Wietek J, Fernandez Lahore RG, Sandaa RA, Bratbak G, Hegemann P, Beja O. Curr Biol. 2020 Dec 21;30(24):4910-4920.e5. doi: 10.1016/j.cub.2020.09.056. Epub 2020 Oct 15. 10.1016/j.cub.2020.09.056 PubMed 33065010
