PurposeExpresses low-affinity split-TurboID N-terminal fragment in mammalian cells
-
Depositing Lab
-

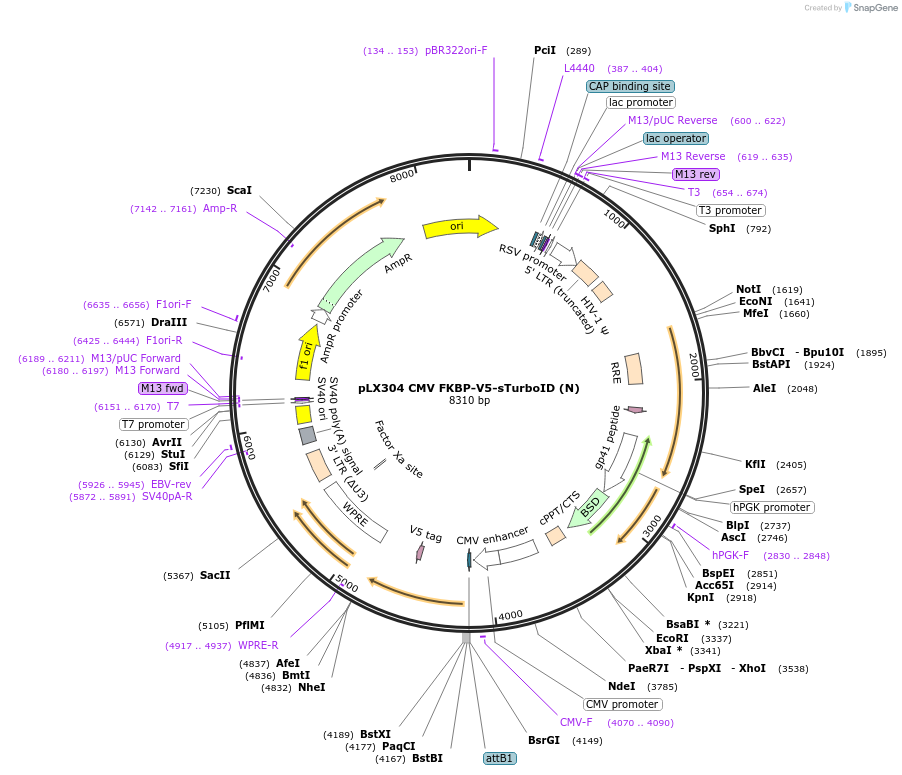

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 153002 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepLX304
- Backbone size w/o insert (bp) 7668
- Total vector size (bp) 8310
-
Vector typeMammalian Expression, Lentiviral
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namesTurboID (N) (L73)
-
Insert Size (bp)642
- Promoter CMV
-
Tags
/ Fusion Proteins
- FKBP
- V5
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CGC AAA TGG GCG GTA GGC GTG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLX304 CMV FKBP-V5-sTurboID (N) was a gift from Alice Ting (Addgene plasmid # 153002 ; http://n2t.net/addgene:153002 ; RRID:Addgene_153002) -
For your References section:
Split-TurboID enables contact-dependent proximity labeling in cells. Cho KF, Branon TC, Rajeev S, Svinkina T, Udeshi ND, Thoudam T, Kwak C, Rhee HW, Lee IK, Carr SA, Ting AY. Proc Natl Acad Sci U S A. 2020 May 18. pii: 1919528117. doi: 10.1073/pnas.1919528117. 10.1073/pnas.1919528117 PubMed 32424107
