pUC19-phzAG
(Plasmid #141106)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 141106 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

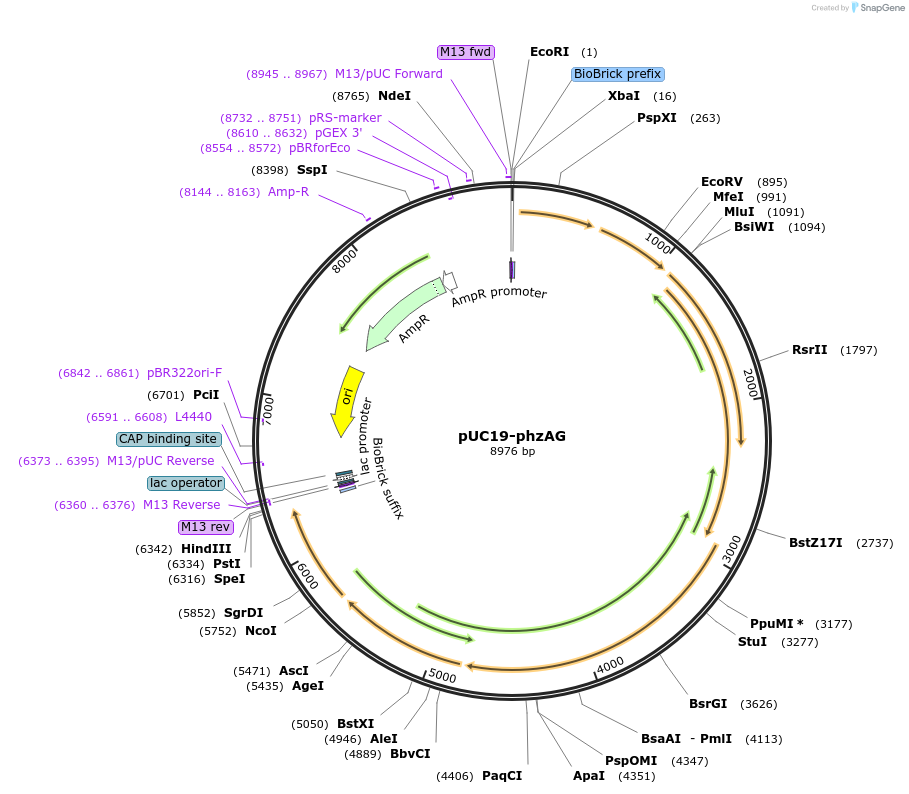

Backbone

  • Vector backbone
    pUC19
  • Backbone size w/o insert (bp) 2641
  • Total vector size (bp) 8976
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    phzABCDEFG
  • Species
    Pseudomonas aeruginosa
  • Insert Size (bp)
    6335

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site PstI (not destroyed)
  • 5′ sequencing primer M13F
  • 3′ sequencing primer M13R
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pUC19-phzAG was a gift from Martin Buck (Addgene plasmid # 141106 ; http://n2t.net/addgene:141106 ; RRID:Addgene_141106)

  • For your References section:

    Phenazines as model low-midpoint potential electron shuttles for photosynthetic bioelectrochemical systems. Clifford E, Bradley R, Wey L, Lawrence J, Chen X, Howe C and Zhang JZ.. Chem. Sci. (2021) 10.1039/D0SC05655C
