pLz76_CB_operon_CsoS2_N4
(Plasmid
#140858)
-
PurposeSame as pLz37 but with CsoS2 truncated such that NTD repeats N1, N2, and N3 are removed
-
Depositing Lab
-

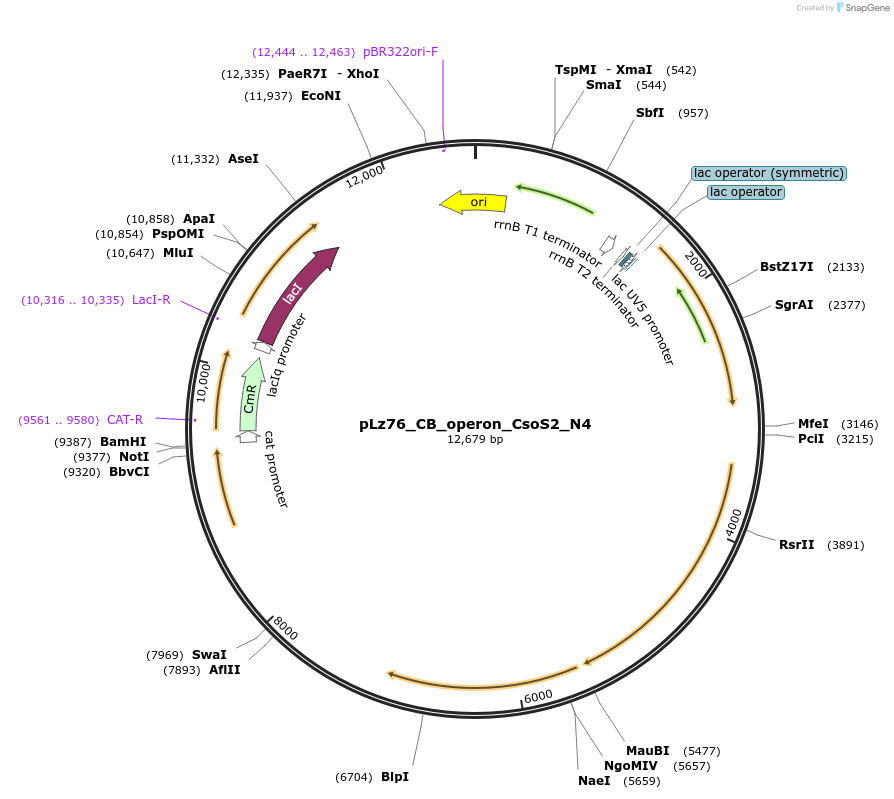

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 140858 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneNS3
- Backbone size w/o insert (bp) 4891
- Total vector size (bp) 12679
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameCbbL, CbbS, CsoS2 (delN1-N3), CsoSCA, CsoS4A, CsoS4B, CsoS1C, CsoS1A, CsoS1B, CsoS1D
-
SpeciesHalothiobacillus neapolitanus
-
Insert Size (bp)7790
-
Mutationdeleted amino acids 1-189 of CsoS2
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLz76_CB_operon_CsoS2_N4 was a gift from David Savage (Addgene plasmid # 140858 ; http://n2t.net/addgene:140858 ; RRID:Addgene_140858) -
For your References section:
Multivalent interactions between CsoS2 and Rubisco mediate alpha-carboxysome formation. Oltrogge LM, Chaijarasphong T, Chen AW, Bolin ER, Marqusee S, Savage DF. Nat Struct Mol Biol. 2020 Mar;27(3):281-287. doi: 10.1038/s41594-020-0387-7. Epub 2020 Mar 2. 10.1038/s41594-020-0387-7 PubMed 32123388
