Lapronic/pRSETB
(Plasmid
#140755)
-
PurposeFRET-Based Genetically Encoded Nanosensor for Lactate/Pyruvate Ratio
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 140755 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepRSETB
- Backbone size w/o insert (bp) 2846
- Total vector size (bp) 4932
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameLapronic (Lactate/PYRuvate Ratio Optical Nano-Indicator from CECs)
-
SpeciesSynthetic
-
Insert Size (bp)2076
- Promoter T7
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer T7 Promoter
- 3′ sequencing primer T7 Terminator (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Lapronic/pRSETB was a gift from Luis Felipe Barros (Addgene plasmid # 140755 ; http://n2t.net/addgene:140755 ; RRID:Addgene_140755) -
For your References section:
Imaging of the Lactate/Pyruvate Ratio Using a Genetically Encoded FRET Indicator. Galaz A, Cortes-Molina F, Arce-Molina R, Romero-Gomez I, Mardones GA, Barros LF, San Martin A. Anal Chem. 2020 Jun 29. doi: 10.1021/acs.analchem.0c01741. 10.1021/acs.analchem.0c01741 PubMed 32600029

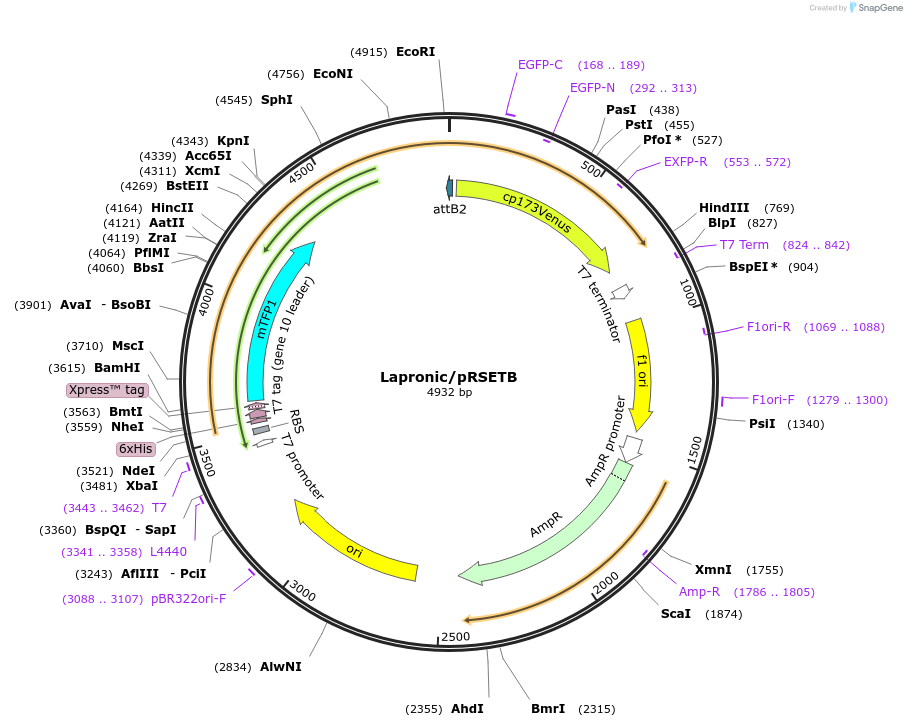

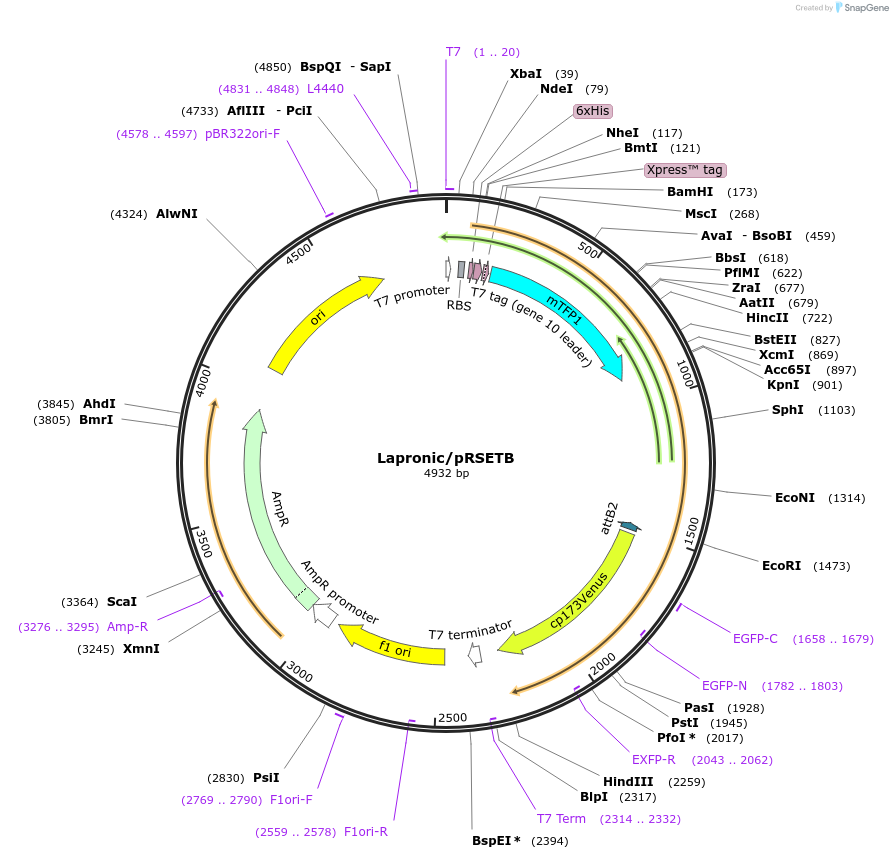

Map uploaded by the depositor.
