pBWB424
(Plasmid
#140638)
-

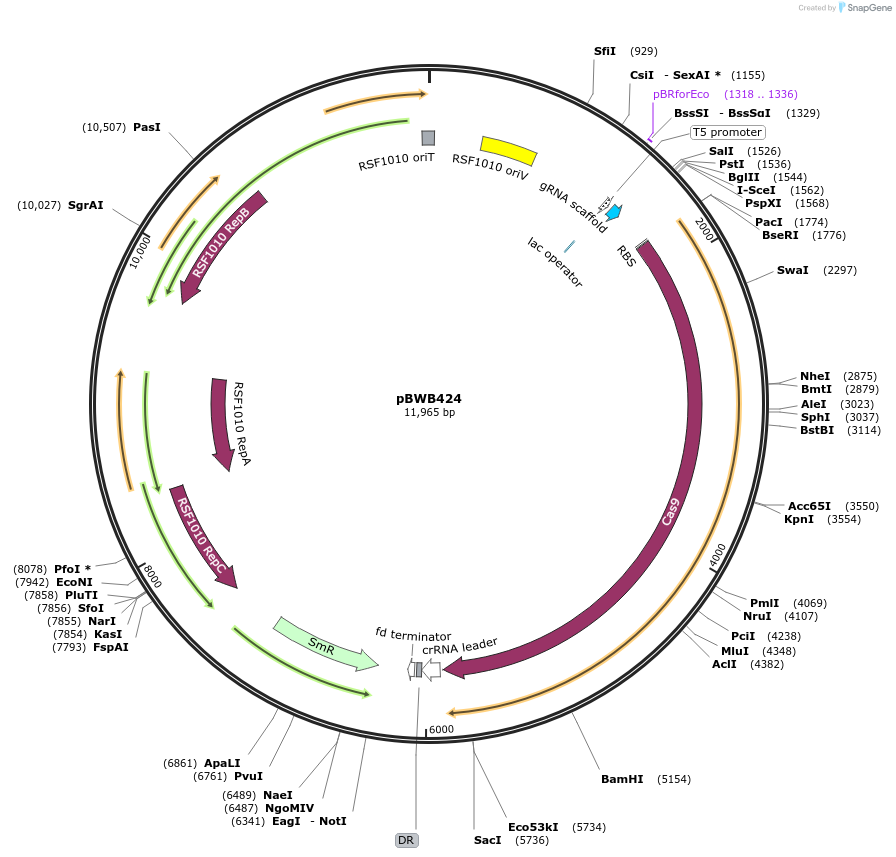

PurposeRSF1010-Cas9-vanAB gRNA. Vector with constitutive Cas9 and gRNA targeting vanAB locus.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 140638 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneCRISPRi-ME (Jeffrey Barrick Laboratory)
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Spectinomycin, 50 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)DH5alpha
-
Growth instructionsCan be grown at 30 or 37 C. 30 C used for referenced study in ADP1, del_vanAB::kanR-lacI-Trc-mCherry.
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameCas9
-
Insert Size (bp)4107
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byReceived from Jeffrey Barrick laboratory at UT Austin.
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Derivative of CRISPRi-ME from Peng et al., "Synthetic Genome Defenses against Selfish DNA Elements Stabilize Engineered Bacteria against Evolutionary Failure", ACS Synthetic Biology, 2019. Vector was modified to take the dCas9 to Cas9 and gRNA was substituted to no longer target the insertion sequences, but instead the vanAB genes in ADP1.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBWB424 was a gift from Keith Tyo (Addgene plasmid # 140638 ; http://n2t.net/addgene:140638 ; RRID:Addgene_140638) -
For your References section:
Development of a genetic toolset for the highly engineerable and metabolically versatile Acinetobacter baylyi ADP1. Biggs BW, Bedore SR, Arvay E, Huang S, Subramanian H, McIntyre EA, Duscent-Maitland CV, Neidle EL, Tyo KEJ. Nucleic Acids Res. 2020 Apr 4. pii: 5815822. doi: 10.1093/nar/gkaa167. 10.1093/nar/gkaa167 PubMed 32246719
