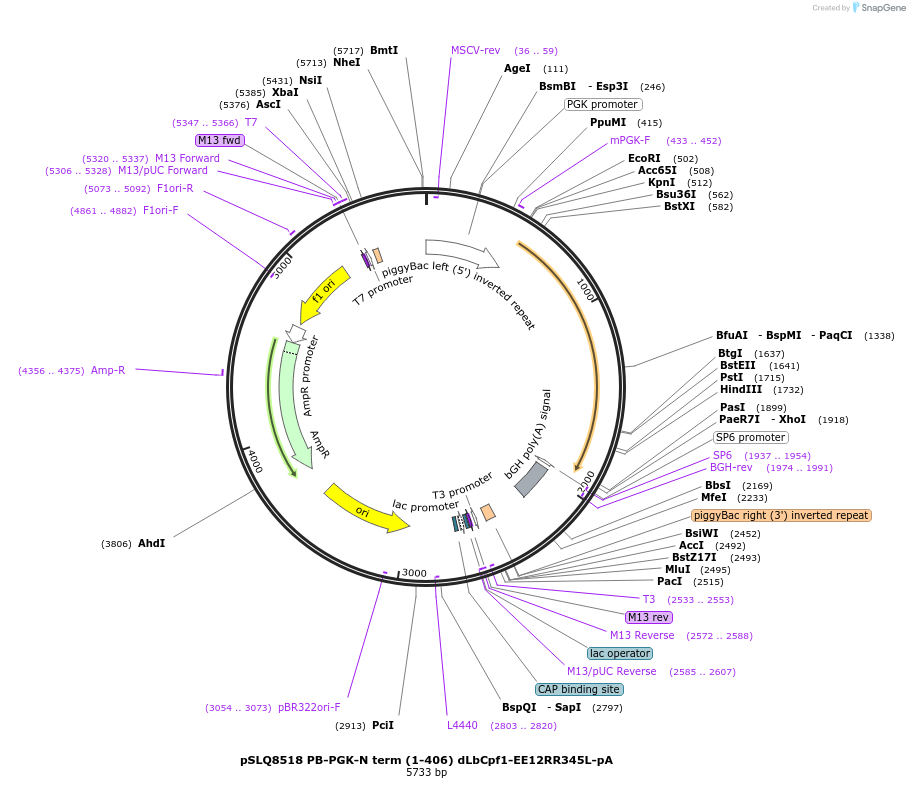

pSLQ8518 PB-PGK-N term (1-406) dLbCpf1-EE12RR345L-pA
(Plasmid #140221)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 140221 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    PB
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    dLbCpf1 (Cas12a) N terminal half (406) with zipper
  • Promoter PGK

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GGCATTCTGCACGCTTCAAAAGC
  • 3′ sequencing primer tagaaggcacagtcgagg
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSLQ8518 PB-PGK-N term (1-406) dLbCpf1-EE12RR345L-pA was a gift from Stanley Qi (Addgene plasmid # 140221 ; http://n2t.net/addgene:140221 ; RRID:Addgene_140221)
  • For your References section:

    Multiple Input Sensing and Signal Integration Using a Split Cas12a System. Kempton HR, Goudy LE, Love KS, Qi LS. Mol Cell. 2020 Jan 30. pii: S1097-2765(20)30037-X. doi: 10.1016/j.molcel.2020.01.016. 10.1016/j.molcel.2020.01.016 PubMed 32027839
