pLenti-CMV-FlaviA-mNeptune-puro
(Plasmid
#140091)
-
PurposeFluorescence activatable reporter of flavivirus NS2B-NS3 protease activity
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 140091 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

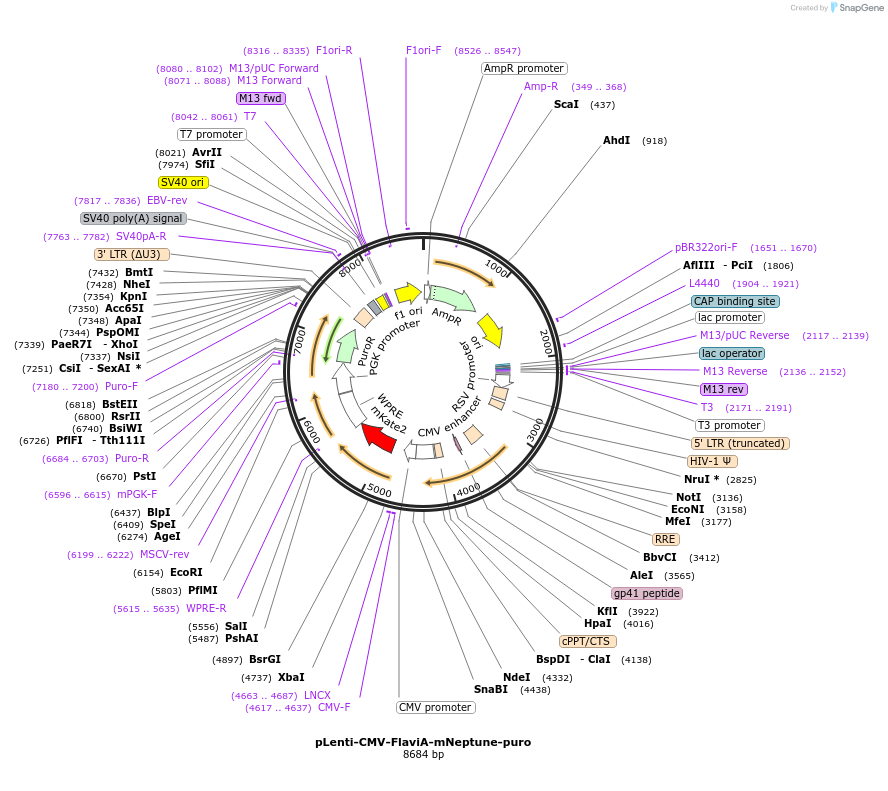

Backbone
-
Vector backbonepLenti CMV GFP Puro (658-5) (Addgene Plasmid #17448)
-
Backbone manufacturerEric Campeau, Paul Kaufman
- Backbone size w/o insert (bp) 7871
- Total vector size (bp) 8681
-
Modifications to backboneRemoval of EGFP coding sequence
-
Vector typeMammalian Expression, Lentiviral ; High expression
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameFlaviA-mNeptune
-
Insert Size (bp)813
- Promoter CMV
-
Tag
/ Fusion Protein
- mNeptune (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XbaI (not destroyed)
- 3′ cloning site SalI (not destroyed)
- 5′ sequencing primer CMV-F
- 3′ sequencing primer WPRE-R (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
The FlaviA-mNeptune reporter is not suitable for transient transfection as the reporter has a basal background that makes it sensitive to the levels of expression: If the expression is too high the background will mask the signal produced by the reporter and/or generate OSER structures - If the expression is too low you won’t detect enough signal over the background. Our recommendation is to use the pLenti-CMV-FlaviA-mNeptune-puro construct to pack lentiviral particles with the psPAX2 (Addgene #12260) and pMD2.G (Addgene #12259) plasmids, generate stable cell lines and sort cell subpopulations with different levels of the reporter's basal background before testing them. The best reporter cells will be those with the highest signal-to-noise ratio upon flavivirus infection.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLenti-CMV-FlaviA-mNeptune-puro was a gift from Jorge Luis Arias-Arias (Addgene plasmid # 140091 ; http://n2t.net/addgene:140091 ; RRID:Addgene_140091) -
For your References section:
A fluorescence activatable reporter of flavivirus NS2B-NS3 protease activity enables live imaging of infection in single cells and viral plaques. Arias-Arias JL, MacPherson DJ, Hill ME, Hardy JA, Mora-Rodriguez R. J Biol Chem. 2020 Jan 9. pii: RA119.011319. doi: 10.1074/jbc.RA119.011319. 10.1074/jbc.RA119.011319 PubMed 31919100
