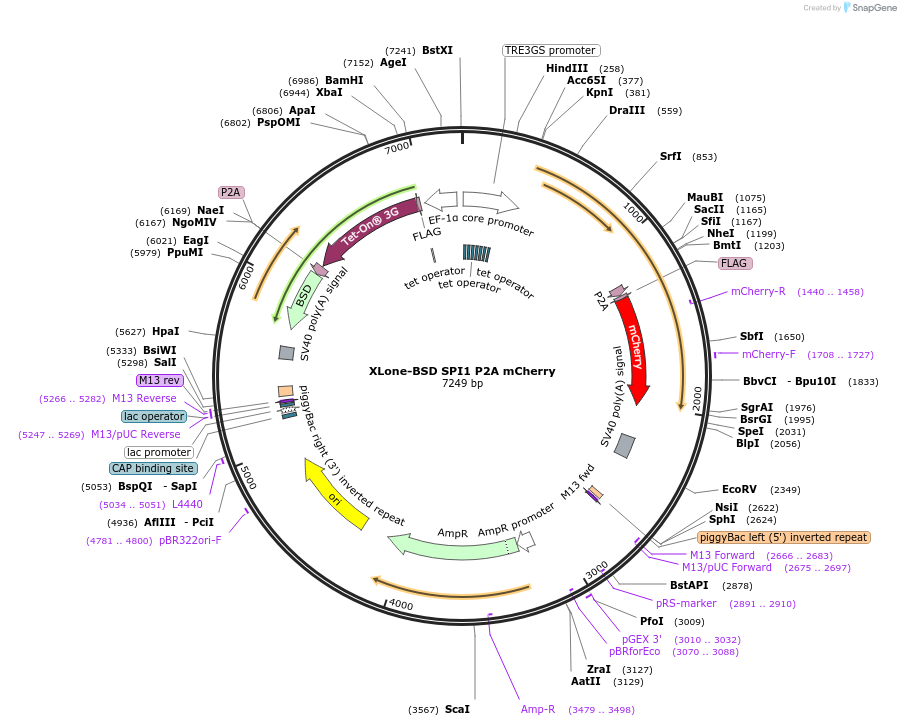

XLone-BSD SPI1 P2A mCherry
(Plasmid #140031)

• Purpose: Tunable and temporal expression control of SPI1 and mCherry
• Depositing Lab: Xiaoping Bao
• Publication: Xlone Puro plasmids for inducible gene expression in mammal cells (unpublished)

Backbone

• Vector backbone: Addgene #96930
• Backbone size w/o insert (bp): 5607
• Total vector size (bp): 7249
• Modifications to backbone: eGFP switched to SPI1-P2A-mCherry
• Vector type: Mammalian Expression, Synthetic Biology
• Selectable markers: Blasticidin

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: SPI1
• Alt name: PU.1
• Alt name: SFPI1
• Species: H. sapiens (human)
• Insert Size (bp): 810
• Entrez Gene: SPI1 (a.k.a. AGM10, OF, PU.1, SFPI1, SPI-1, SPI-A)
• Promoter: TRE3G
• Tag / Fusion Protein:
  • mCherry (C terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: KpnI (not destroyed)
• 3′ cloning site: NheI or SpeI (not destroyed)
• 5′ sequencing primer: M13 FWD
• 3′ sequencing primer: M13 RVS

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
  • Tet Systems Limited Use Label License
• Industry Terms:
  • Not Available to Industry
