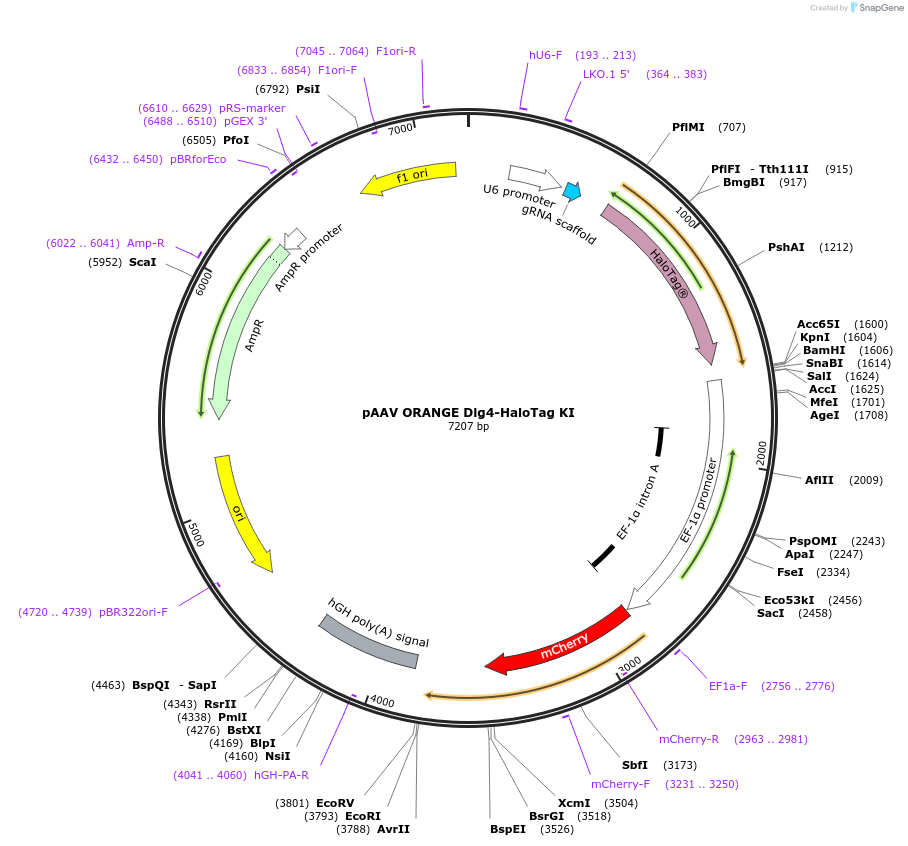

pAAV ORANGE Dlg4-HaloTag KI
(Plasmid #139656)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 139656 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 7338
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    gRNA and HaloTag donor
  • gRNA/shRNA sequence
    AATCAGAGTCTCTCTCGGGC
  • Species
    M. musculus (mouse), R. norvegicus (rat)
  • Promoter U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please note Addgene NGS found some discrepancies in the ITR regions of these plasmids. These regions are repetitive and can be difficult to sequence using NGS. Depositor confirms plasmids are functional

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV ORANGE Dlg4-HaloTag KI was a gift from Harold MacGillavry (Addgene plasmid # 139656 ; http://n2t.net/addgene:139656 ; RRID:Addgene_139656)
  • For your References section:

    ORANGE: A CRISPR/Cas9-based genome editing toolbox for epitope tagging of endogenous proteins in neurons. Willems J, de Jong APH, Scheefhals N, Mertens E, Catsburg LAE, Poorthuis RB, de Winter F, Verhaagen J, Meye FJ, MacGillavry HD. PLoS Biol. 2020 Apr 10;18(4):e3000665. doi: 10.1371/journal.pbio.3000665. 10.1371/journal.pbio.3000665 PubMed 32275651
