pCSIIbleo-PIF3-mEGFP
(Plasmid #139483)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 139483 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

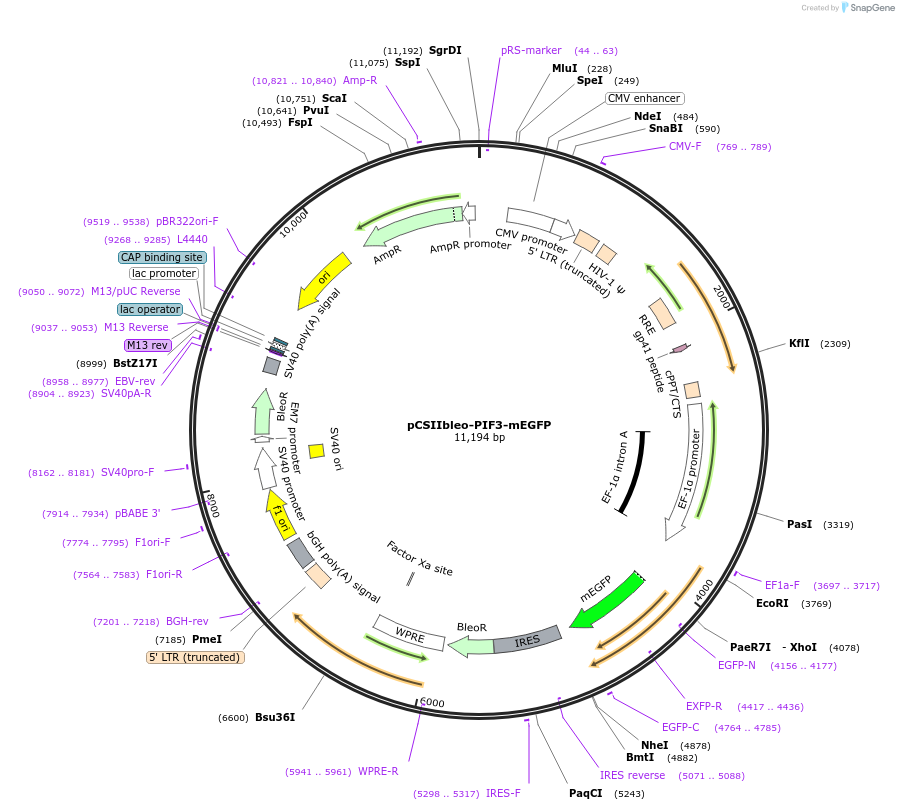

Backbone

  • Vector backbone
    pCSIIbleo
  • Backbone size w/o insert (bp) 10144
  • Total vector size (bp) 11194
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Zeocin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    PIF3
  • Alt name
    Phytochrome interacting factor 3
  • Species
    A. thaliana (mustard weed)
  • Mutation
    PIF3 1-100 aa
  • Entrez Gene
    PIF3 (a.k.a. AT1G09530, F14J9.19, F14J9_19, PAP3, PHOTOCURRENT 1, PHYTOCHROME INTERACTING FACTOR 3, PHYTOCHROME-ASSOCIATED PROTEIN 3, POC1, phytochrome interacting factor 3, purple acid phosphatase 3)
  • Promoter Human EF1a promoter
  • Tag / Fusion Protein
    • mEGFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site SalI (destroyed during cloning)
  • 5′ sequencing primer not determined
  • 3′ sequencing primer GGGCCCTCACATTGCCAAA
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCSIIbleo-PIF3-mEGFP was a gift from Kazuhiro Aoki (Addgene plasmid # 139483 ; http://n2t.net/addgene:139483 ; RRID:Addgene_139483)

  • For your References section:

    Improvement of Phycocyanobilin Synthesis for Genetically Encoded Phytochrome-Based Optogenetics. Uda Y, Miura H, Goto Y, Yamamoto K, Mii Y, Kondo Y, Takada S, Aoki K. ACS Chem Biol. 2020 Nov 20;15(11):2896-2906. doi: 10.1021/acschembio.0c00477. Epub 2020 Nov 9. 10.1021/acschembio.0c00477 PubMed 33164485
