pSBBi-RP TCS1
(Plasmid #139161)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 139161 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSBBi-RP
  • Total vector size (bp) 7521
  • Vector type
    Mammalian Expression ; Transposon
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Caffeine Synthase 1 [Camellia sinensis]
  • Alt name
    TCS1
  • Alt name
    Tea Caffeine Synthase 1
  • Species
    Camellia sinensis
  • Insert Size (bp)
    1110
  • GenBank ID
    BAB12278.1
  • Promoter EF1α

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SfiI (not destroyed)
  • 3′ cloning site SfiI (not destroyed)
  • 5′ sequencing primer TCAAGCCTCAGACAGTGGTTC
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

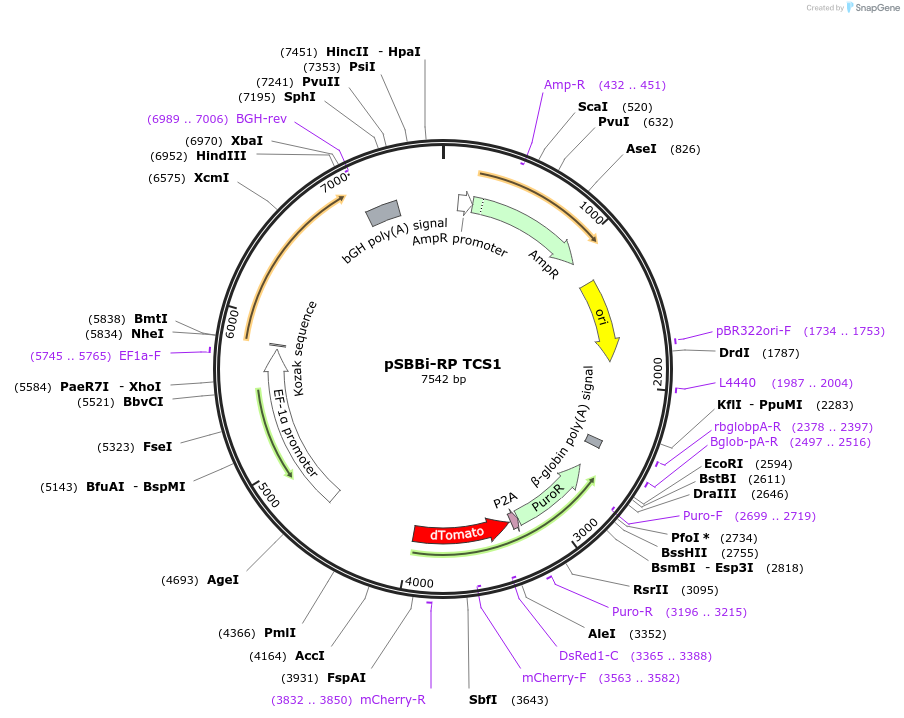

SB-transposon with constitutive bi-directional promoter. One side contains Camellia sinensis caffeine synthase 1; the other side contains RFP and puromycin resistance genes.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSBBi-RP TCS1 was a gift from Neal Devaraj (Addgene plasmid # 139161 ; http://n2t.net/addgene:139161 ; RRID:Addgene_139161)
