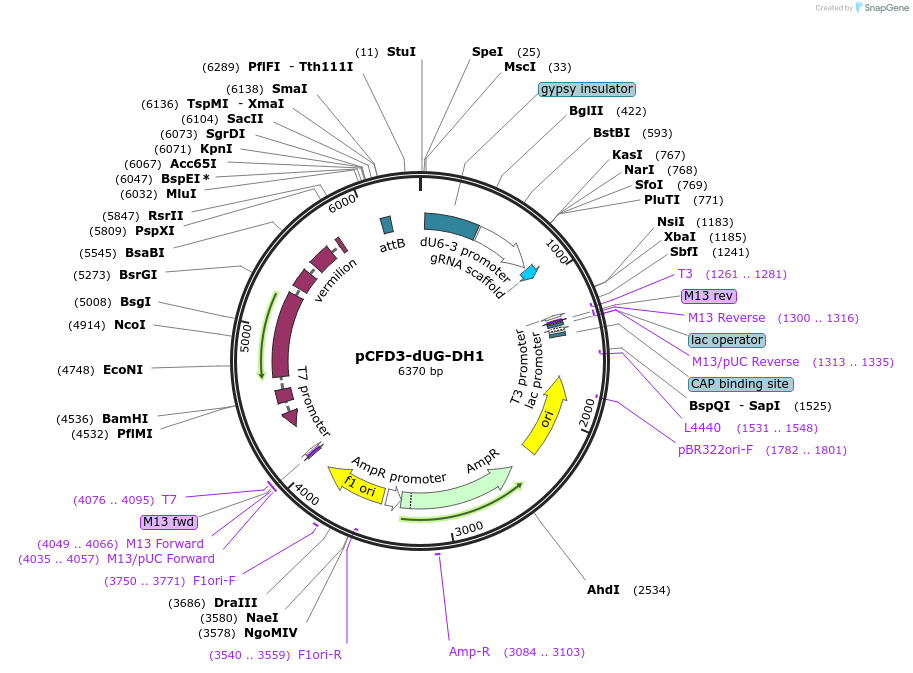

pCFD3-dUG-DH1
(Plasmid #138963)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 138963 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCFD3-dUG
  • Vector type
    Insect Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    DH1 oligo
  • gRNA/shRNA sequence
    GTCGCTGGTGGTGCGGGTGGGGATGTTT

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BbsI (destroyed during cloning)
  • 3′ cloning site Bbs1 (destroyed during cloning)
  • 5′ sequencing primer ccagactcagttcg
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://www.biorxiv.org/content/10.1101/718841v3 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCFD3-dUG-DH1 was a gift from Paul Adler (Addgene plasmid # 138963 ; http://n2t.net/addgene:138963 ; RRID:Addgene_138963)

  • For your References section:

    The localization of chitin synthase mediates the patterned deposition of chitin in developing Drosophila bristles. Adler PN. bioRxiv 2020 10.1101/718841
