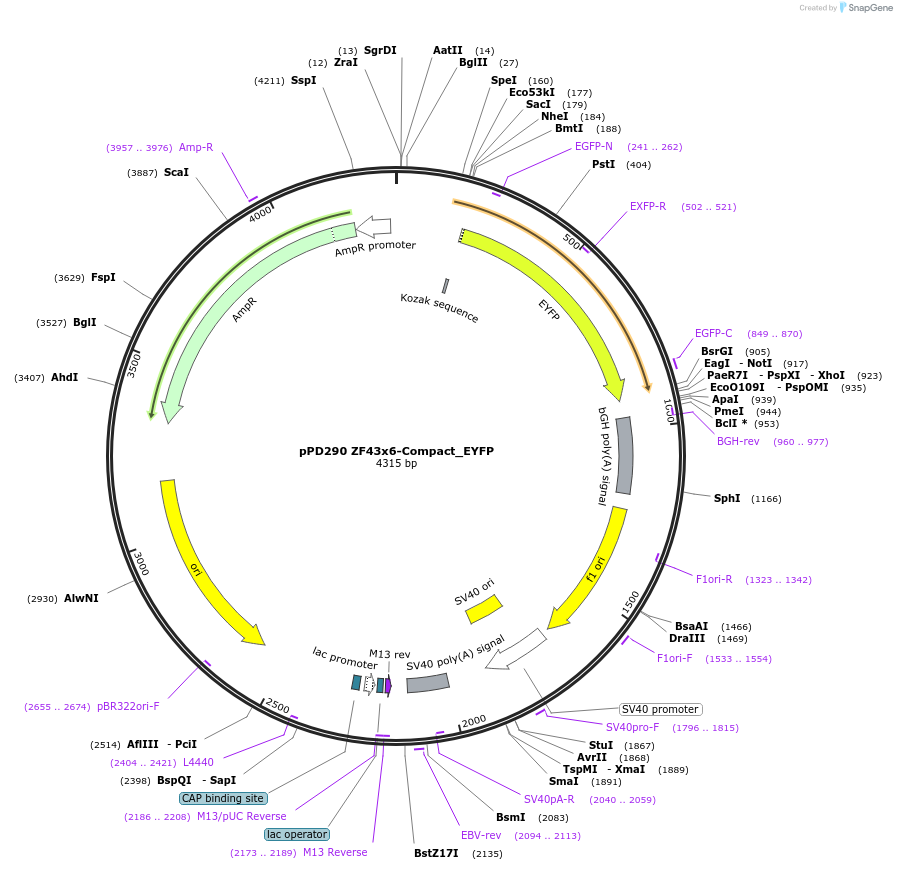

pPD290 ZF43x6-Compact_EYFP
(Plasmid #138901)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 138901 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pPD152 Reporter Template v2
  • Vector type
    Mammalian Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ZF43x6-Compact
  • Species
    Synthetic
  • Promoter ZF43x6-Compact

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site NheI (not destroyed)
  • 5′ sequencing primer CGACACGGAAATGTTGAATAC
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Leonard Lab plasmid reference number: L1438

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pPD290 ZF43x6-Compact_EYFP was a gift from Joshua Leonard (Addgene plasmid # 138901 ; http://n2t.net/addgene:138901 ; RRID:Addgene_138901)

  • For your References section:

    The COMET toolkit for composing customizable genetic programs in mammalian cells. Donahue PS, Draut JW, Muldoon JJ, Edelstein HI, Bagheri N, Leonard JN. Nat Commun. 2020 Feb 7;11(1):779. doi: 10.1038/s41467-019-14147-5. 10.1038/s41467-019-14147-5 PubMed 32034124
