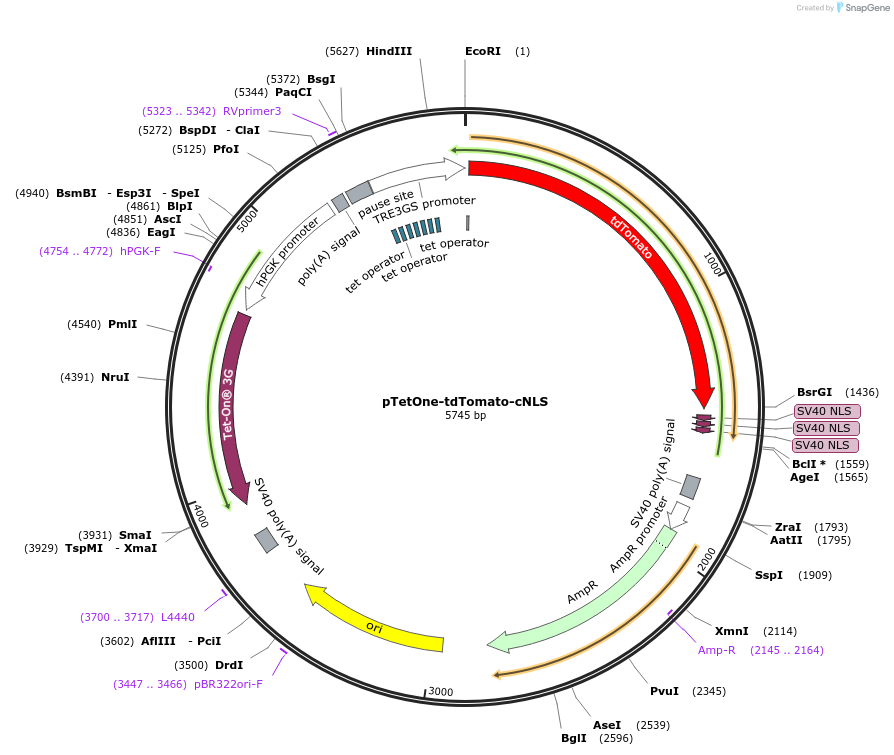

pTetOne-tdTomato-cNLS
(Plasmid #138529)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 138529 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pTetOne
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4207
  • Total vector size (bp) 5745
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    tdTomato
  • Species
    Synthetic
  • Insert Size (bp)
    1570
  • GenBank ID
    AY678269.1
  • Promoter TRE3Gs
  • Tag / Fusion Protein
    • 3x SV40 cNLS (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site AgeI (not destroyed)
  • 5′ sequencing primer AACGGACGTGAAGAATGTG
  • 3′ sequencing primer SV40pA-R
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTetOne-tdTomato-cNLS was a gift from Christopher Grigsby & Ana Teixeira (Addgene plasmid # 138529 ; http://n2t.net/addgene:138529 ; RRID:Addgene_138529)

  • For your References section:

    Modeling the transport of nuclear proteins along single skeletal muscle cells. Taylor-Weiner H, Grigsby CL, Ferreira DMS, Dias JM, Stevens MM, Ruas JL, Teixeira AI. Proc Natl Acad Sci U S A. 2020 Feb 11;117(6):2978-2986. doi: 10.1073/pnas.1919600117. Epub 2020 Jan 27. 10.1073/pnas.1919600117 PubMed 31988126
