PL-5LTR-GW-A
(Plasmid
#138480)
-
PurposeFor expression of ribozyme-flanked sgRNA after the Gateway (GW) LR cloning.
-
Depositing Lab
-

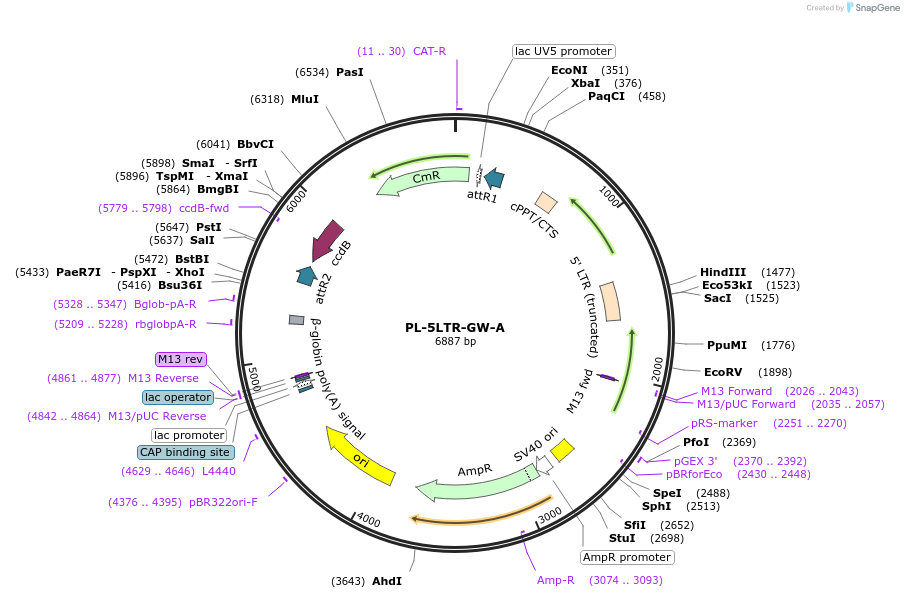

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 138480 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonePL-sin vector
- Backbone size w/o insert (bp) 5400
- Total vector size (bp) 6887
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)ccdB Survival
-
Growth instructionsAlso Ampicillin resistance
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameGateway attR1/R2 cassette with chloramphenicol resistance and ccdB genes
-
SpeciesE.coli
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
PL-5LTR-GW-A was a gift from Akitsu Hotta (Addgene plasmid # 138480 ; http://n2t.net/addgene:138480 ; RRID:Addgene_138480) -
For your References section:
Extracellular nanovesicles for packaging of CRISPR-Cas9 protein and sgRNA to induce therapeutic exon skipping. Gee P, Lung MSY, Okuzaki Y, Sasakawa N, Iguchi T, Makita Y, Hozumi H, Miura Y, Yang LF, Iwasaki M, Wang XH, Waller MA, Shirai N, Abe YO, Fujita Y, Watanabe K, Kagita A, Iwabuchi KA, Yasuda M, Xu H, Noda T, Komano J, Sakurai H, Inukai N, Hotta A. Nat Commun. 2020 Mar 13;11(1):1334. doi: 10.1038/s41467-020-14957-y. 10.1038/s41467-020-14957-y PubMed 32170079
