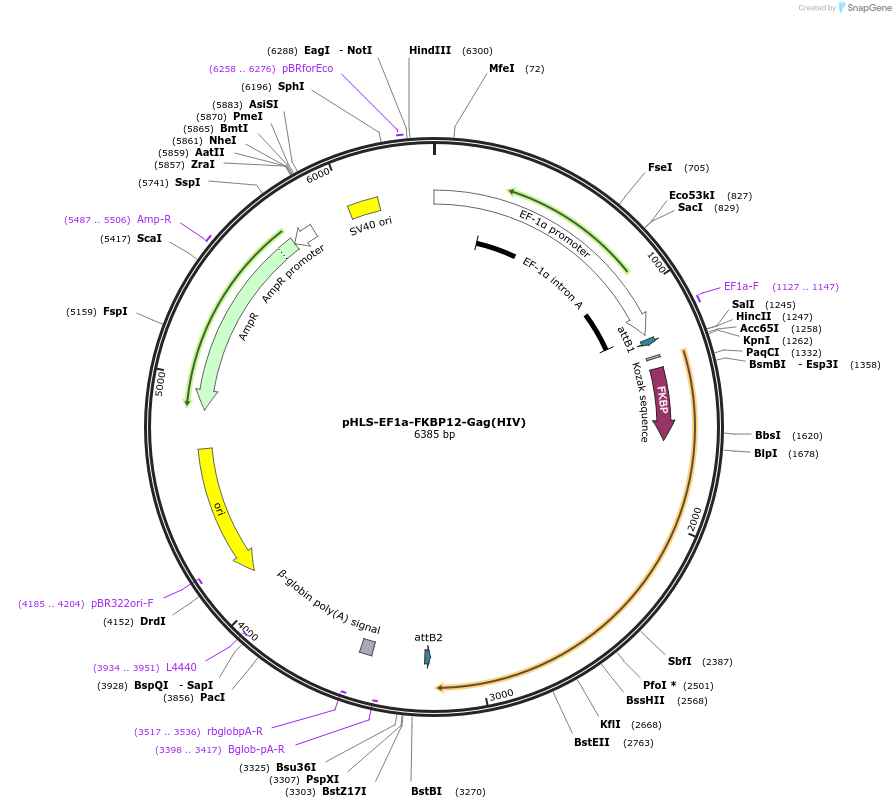

pHLS-EF1a-FKBP12-Gag(HIV)
(Plasmid #138476)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 138476 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pHLS vector
  • Backbone manufacturer
    Hotta lab
  • Backbone size w/o insert (bp) 4480
  • Total vector size (bp) 6385
  • Modifications to backbone
    pHL vector with SV40 replication origin
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    HIV Gag
  • Species
    HIV-1
  • Tags / Fusion Proteins
    • Lynn Myristolation site (N terminal on insert)
    • FRBP12 (N terminal on insert)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please note that the Addgene verified sequence differs slightly from the depositor's sequence (.gb file). These differences are of no functional concern. The EF1a promoter sequence matches other known EF1a sequnces.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHLS-EF1a-FKBP12-Gag(HIV) was a gift from Akitsu Hotta (Addgene plasmid # 138476 ; http://n2t.net/addgene:138476 ; RRID:Addgene_138476)

  • For your References section:

    Extracellular nanovesicles for packaging of CRISPR-Cas9 protein and sgRNA to induce therapeutic exon skipping. Gee P, Lung MSY, Okuzaki Y, Sasakawa N, Iguchi T, Makita Y, Hozumi H, Miura Y, Yang LF, Iwasaki M, Wang XH, Waller MA, Shirai N, Abe YO, Fujita Y, Watanabe K, Kagita A, Iwabuchi KA, Yasuda M, Xu H, Noda T, Komano J, Sakurai H, Inukai N, Hotta A. Nat Commun. 2020 Mar 13;11(1):1334. doi: 10.1038/s41467-020-14957-y. 10.1038/s41467-020-14957-y PubMed 32170079
