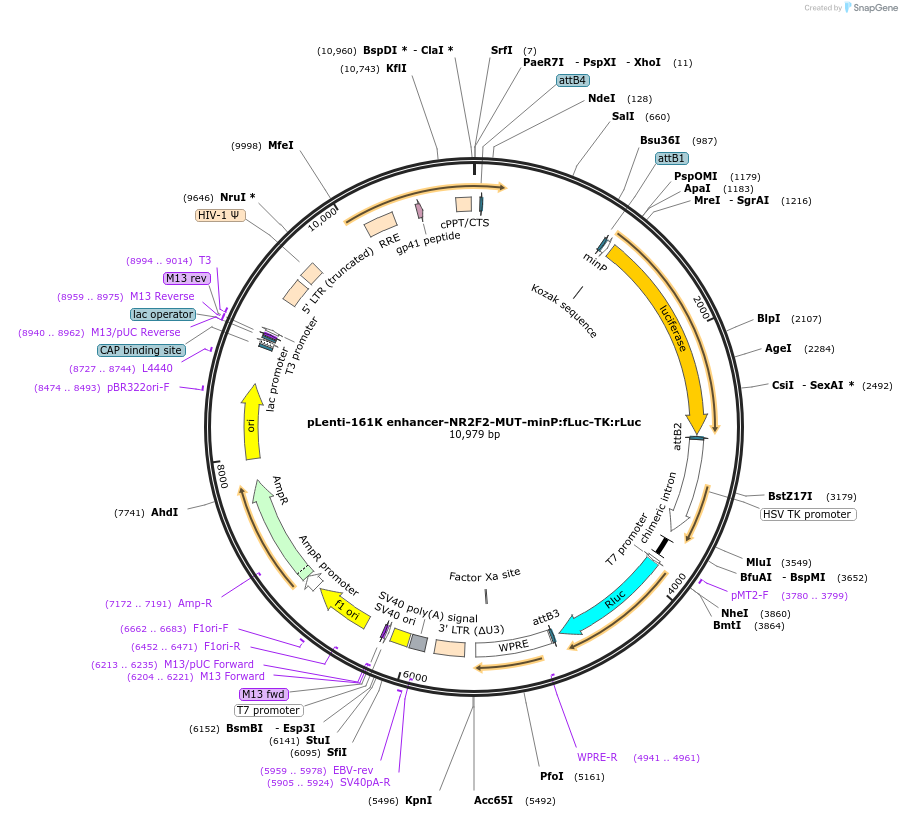

pLenti-161K enhancer-NR2F2-MUT-minP:fLuc-TK:rLuc
(Plasmid
#138368)
-
PurposeLentiviral plasmid contains 161k modified human enhancer with with NR2F2 binding sites mutated driving firefly Luciferase 2 and Renilla Luciferase driven by TK promoter
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 138368 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneLentiviral
- Total vector size (bp) 10979
-
Vector typeMammalian Expression, Lentiviral
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert name161K human enhancer, with NR2F2 binding sites mutated, driving firefly enhancer and TK driving renilla luciferase
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer T7
- 3′ sequencing primer T3 (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLenti-161K enhancer-NR2F2-MUT-minP:fLuc-TK:rLuc was a gift from Nathan Lawson (Addgene plasmid # 138368 ; http://n2t.net/addgene:138368 ; RRID:Addgene_138368) -
For your References section:
Genomic Characterization of Endothelial Enhancers Reveals a Multifunctional Role for NR2F2 in Regulation of Arteriovenous Gene Expression. Sissaoui S, Yu J, Yan A, Li R, Zhu LJ, Kucukural A, Yukselen O, Lawson ND. Circ Res. 2020 Feb 17. doi: 10.1161/CIRCRESAHA.119.316075. 10.1161/CIRCRESAHA.119.316075 PubMed 32065070
