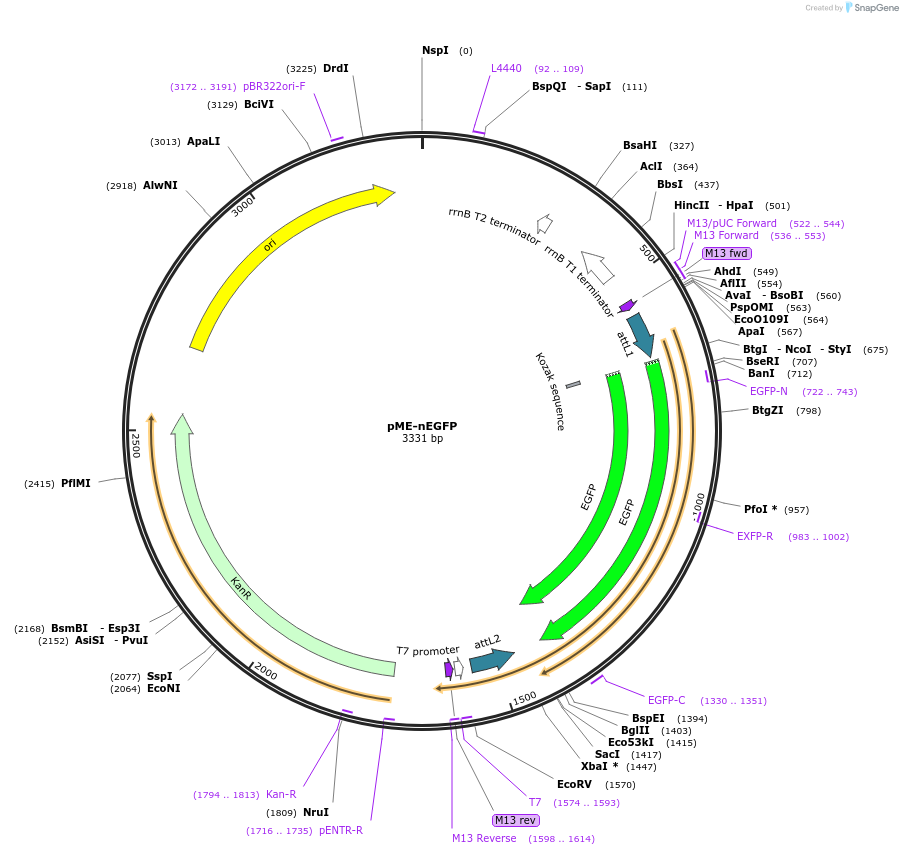

pME-nEGFP
(Plasmid
#138363)
-
PurposeGateway compatible middle entry clone contains nuclear EGFP sequences.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 138363 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonePDONR221
-
Backbone manufacturerThermoFisher
- Backbone size w/o insert (bp) 2536
- Total vector size (bp) 3331
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namenEGFP
-
Insert Size (bp)795
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer PUC-M13 F
- 3′ sequencing primer PUC-M13 R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pME-nEGFP was a gift from Nathan Lawson (Addgene plasmid # 138363 ; http://n2t.net/addgene:138363 ; RRID:Addgene_138363) -
For your References section:
Genomic Characterization of Endothelial Enhancers Reveals a Multifunctional Role for NR2F2 in Regulation of Arteriovenous Gene Expression. Sissaoui S, Yu J, Yan A, Li R, Zhu LJ, Kucukural A, Yukselen O, Lawson ND. Circ Res. 2020 Feb 17. doi: 10.1161/CIRCRESAHA.119.316075. 10.1161/CIRCRESAHA.119.316075 PubMed 32065070
