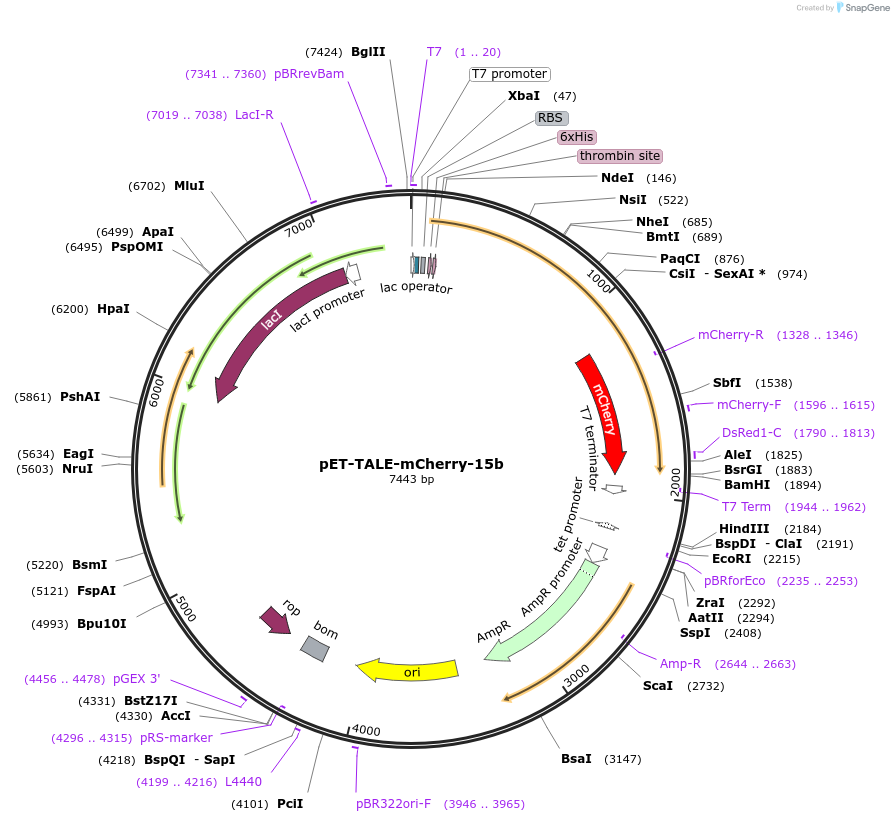

pET-TALE-mCherry-15b
(Plasmid #138287)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 138287 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pET-15b
  • Backbone manufacturer
    Novagen
  • Backbone size w/o insert (bp) 5708
  • Total vector size (bp) 7457
  • Vector type
    Bacterial Expression, TALEN

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    7-mer tTALE-mCherry
  • Insert Size (bp)
    1740
  • Promoter T7 promoter
  • Tag / Fusion Protein
    • 6x His-tag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer Universal T7 Primer
  • 3′ sequencing primer T7 Terminator
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET-TALE-mCherry-15b was a gift from Kyubong Jo (Addgene plasmid # 138287 ; http://n2t.net/addgene:138287 ; RRID:Addgene_138287)

  • For your References section:

    Truncated TALE-FP as DNA Staining Dye in a High-salt Buffer. Shin E, Kim W, Lee S, Bae J, Kim S, Ko W, Seo HS, Lim S, Lee HS, Jo K. Sci Rep. 2019 Nov 20;9(1):17197. doi: 10.1038/s41598-019-53722-0. 10.1038/s41598-019-53722-0 PubMed 31748571
