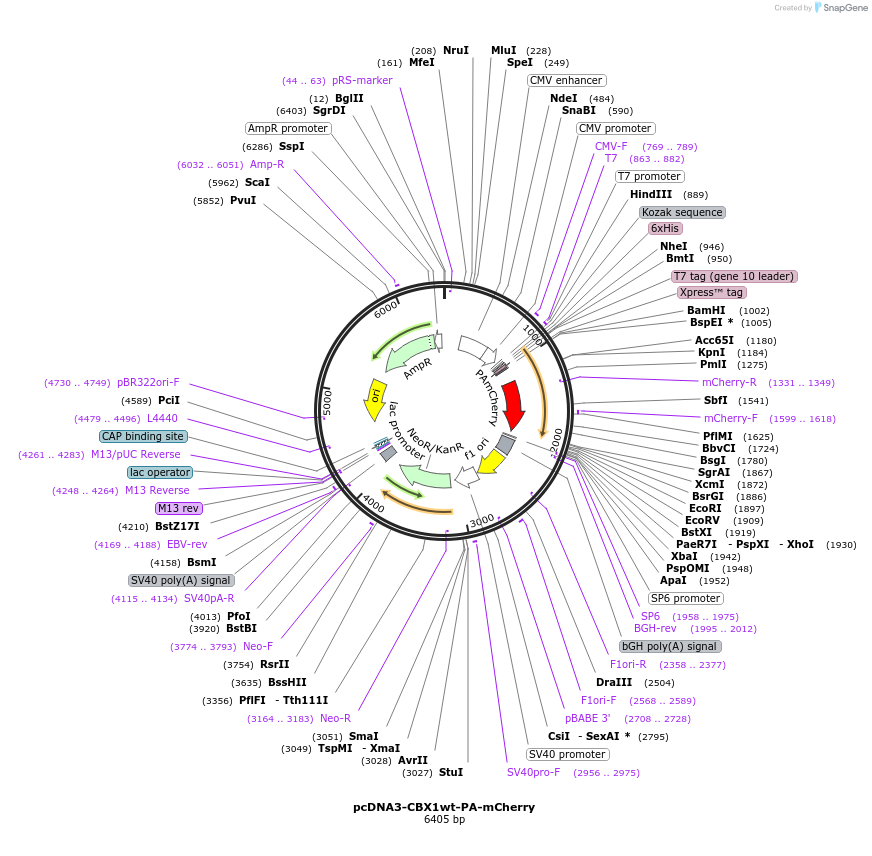

pcDNA3-CBX1wt-PA-mCherry
(Plasmid #138252)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 138252 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3
  • Backbone size w/o insert (bp) 5517
  • Total vector size (bp) 6405
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CBX1-PAmCherry
  • Species
    Synthetic
  • Insert Size (bp)
    888
  • Promoter CMV
  • Tags / Fusion Proteins
    • PAmCherry (C terminal on insert)
    • 6xHIS - T7 tag (gene 10 leader) - Xpress (TM) tag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer CMV forward
  • 3′ sequencing primer BGH reverse
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-CBX1wt-PA-mCherry was a gift from Jin Zhang (Addgene plasmid # 138252 ; http://n2t.net/addgene:138252 ; RRID:Addgene_138252)

  • For your References section:

    Deciphering and engineering chromodomain-methyllysine peptide recognition. Hard R, Li N, He W, Ross B, Mo GCH, Peng Q, Stein RSL, Komives E, Wang Y, Zhang J, Wang W. Sci Adv. 2018 Nov 7;4(11):eaau1447. doi: 10.1126/sciadv.aau1447. eCollection 2018 Nov. 10.1126/sciadv.aau1447 PubMed 30417094
