pYPQ134-STU-Lb
(Plasmid
#138105)
-
Purpose(Empty Backbone) Golden Gate entry vector for 4th crRNA cloning with LbCas12a crRNA scaffold flanked by HH and HDV ribozymes
-
Depositing Lab
-

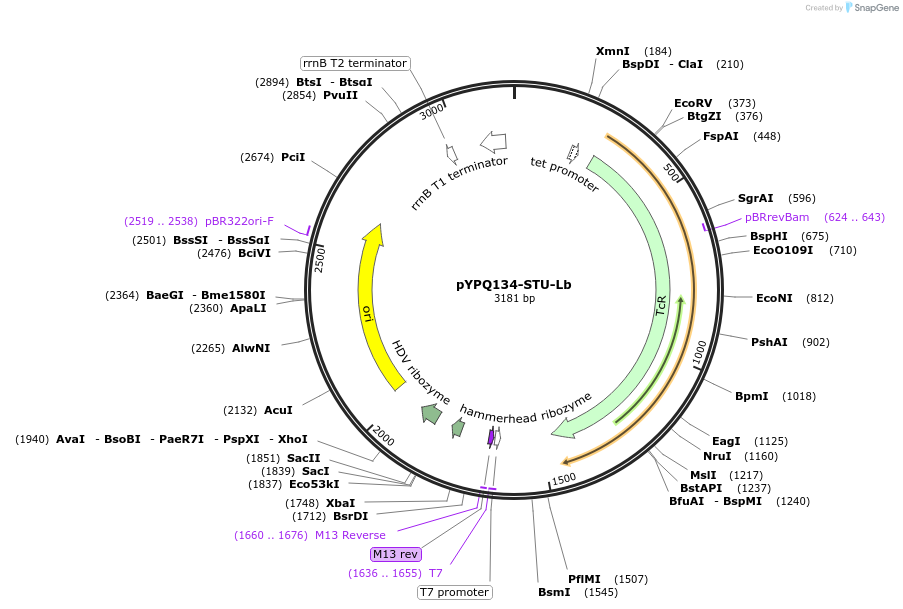

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 138105 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepYPQ134A
-
Vector typePlant Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Tetracycline, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pYPQ134-STU-Lb was a gift from Yiping Qi (Addgene plasmid # 138105 ; http://n2t.net/addgene:138105 ; RRID:Addgene_138105) -
For your References section:
Expanding the scope of plant genome engineering with Cas12a orthologs and highly multiplexable editing systems. Zhang Y, Ren Q, Tang X, Liu S, Malzahn AA, Zhou J, Wang J, Yin D, Pan C, Yuan M, Huang L, Yang H, Zhao Y, Fang Q, Zheng X, Tian L, Cheng Y, Le Y, McCoy B, Franklin L, Selengut JD, Mount SM, Que Q, Zhang Y, Qi Y. Nat Commun. 2021 Mar 29;12(1):1944. doi: 10.1038/s41467-021-22330-w. 10.1038/s41467-021-22330-w PubMed 33782402
