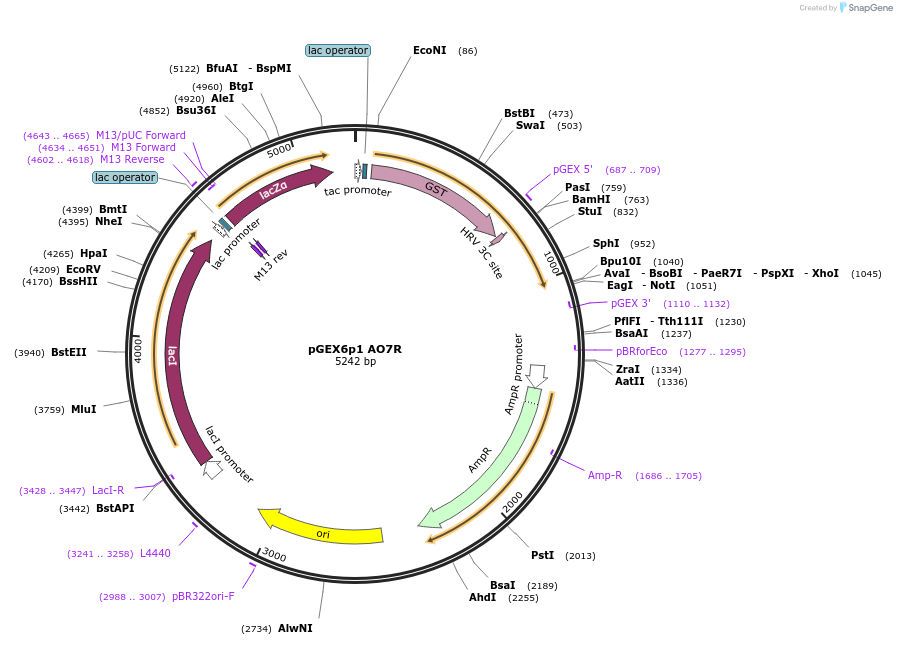

pGEX6p1 AO7R
(Plasmid #137842)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 137842 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pGEX6p1
  • Backbone manufacturer
    GE Healthcare
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    AO7
  • Alt name
    RNF25
  • Species
    H. sapiens (human)
  • GenBank ID
    NM_022453.3
  • Entrez Gene
    RNF25 (a.k.a. AO7)
  • Promoter tac
  • Tag / Fusion Protein
    • GST (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer pGEX 5' sequencing primer
  • 3′ sequencing primer pGEX 3' sequencing primer
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGEX6p1 AO7R was a gift from Allan Weissman (Addgene plasmid # 137842 ; http://n2t.net/addgene:137842 ; RRID:Addgene_137842)

  • For your References section:

    Insights into Ubiquitination from the Unique Clamp-like Binding of the RING E3 AO7 to the E2 UbcH5B. Li S, Liang YH, Mariano J, Metzger MB, Stringer DK, Hristova VA, Li J, Randazzo PA, Tsai YC, Ji X, Weissman AM. J Biol Chem. 2015 Dec 18;290(51):30225-39. doi: 10.1074/jbc.M115.685867. Epub 2015 Oct 16. 10.1074/jbc.M115.685867 PubMed 26475854
