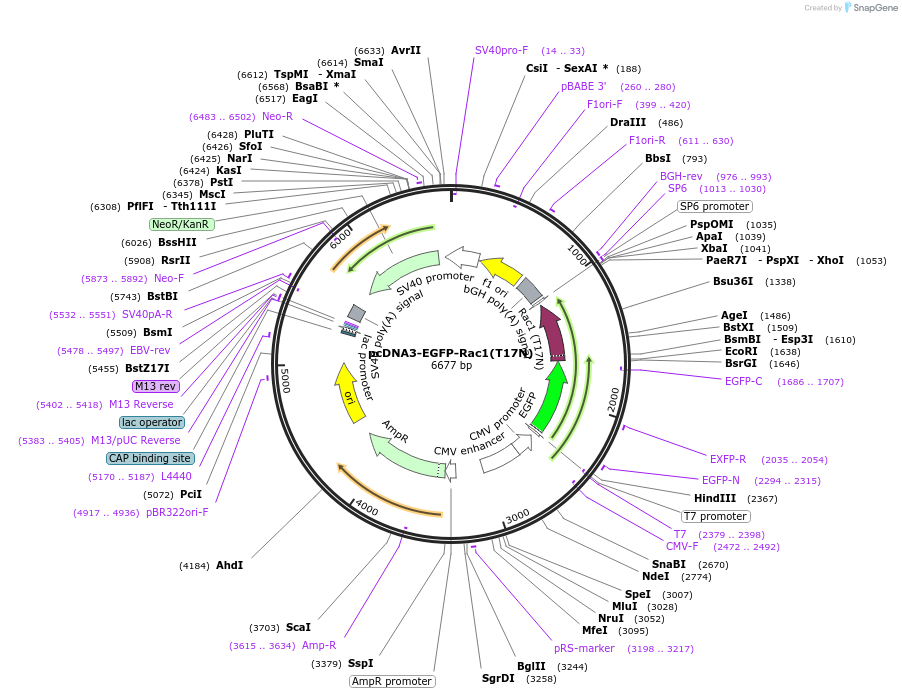

pcDNA3-EGFP-Rac1(T17N)
(Plasmid #13721)

• Depositing Lab: Klaus Hahn
• Publication: Kraynov et al Science. 2000 Oct 13. 290(5490):333-7.

Backbone

• Vector backbone: pcDNA3
• Backbone manufacturer: Invitrogen
• Backbone size w/o insert (bp): 5500
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: EGFP-Rac1(T17N)
• Alt name: Rac1
• Species: H. sapiens (human)
• Insert Size (bp): 1300
• Entrez Gene: RAC1 (a.k.a. MIG5, MRD48, Rac-1, TC-25, p21-Rac1)
• Tag / Fusion Protein:
  • EGFP (N terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: HindIII (not destroyed)
• 3′ cloning site: XhoI (not destroyed)
• 5′ sequencing primer: EGFP-C

Resource Information

• Articles Citing this Plasmid:
  • 8 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Protocols for production and use of Hahn lab biosensors and photactivatable proteins
can be found on their web page, at the URL below. If you have
suggestions for the protocols or have any questions, please feel free to contact the Hahn
lab. Good luck with your experiments!

Hahn lab biosensor protocol: http://www.hahnlab.com/tools/index.html
