pHimar6
(Plasmid #137081)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 137081 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

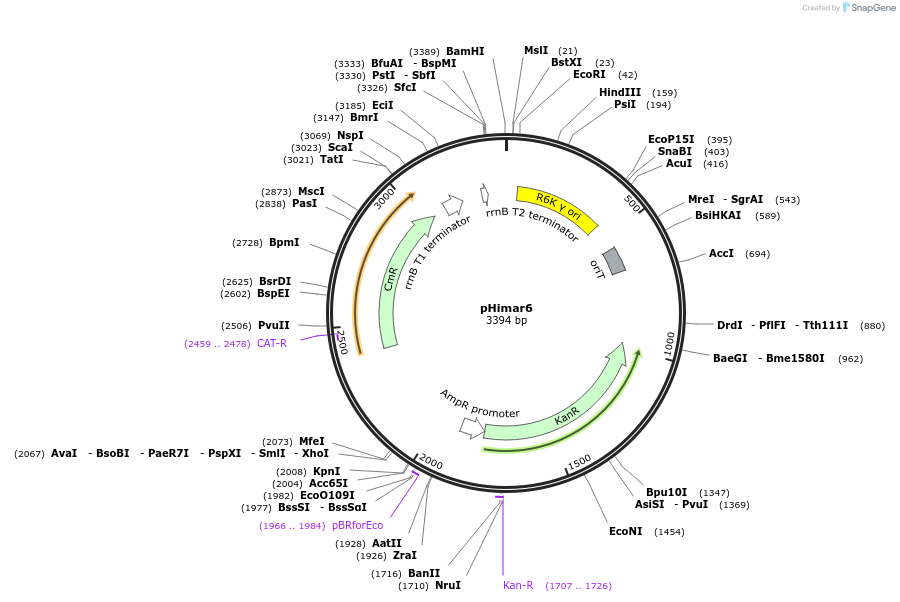

Backbone

  • Vector backbone
    pHimar6
  • Backbone size w/o insert (bp) 2019
  • Total vector size (bp) 3394
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol and Kanamycin, 25 & 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Pir1
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Himar1 mini-transposon with chloramphenicol resistance gene
  • Species
    Synthetic
  • Insert Size (bp)
    1375

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GGGTGGACTCAGAAAGATGAGA
  • 3′ sequencing primer GGCCGTTGCTTCGCAACGTT
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHimar6 was a gift from Harris Wang (Addgene plasmid # 137081 ; http://n2t.net/addgene:137081 ; RRID:Addgene_137081)

  • For your References section:

    An Engineered Cas-Transposon System for Programmable and Site-Directed DNA Transpositions. Chen SP, Wang HH. CRISPR J. 2019 Dec;2(6):376-394. doi: 10.1089/crispr.2019.0030. Epub 2019 Nov 19. 10.1089/crispr.2019.0030 PubMed 31742433
