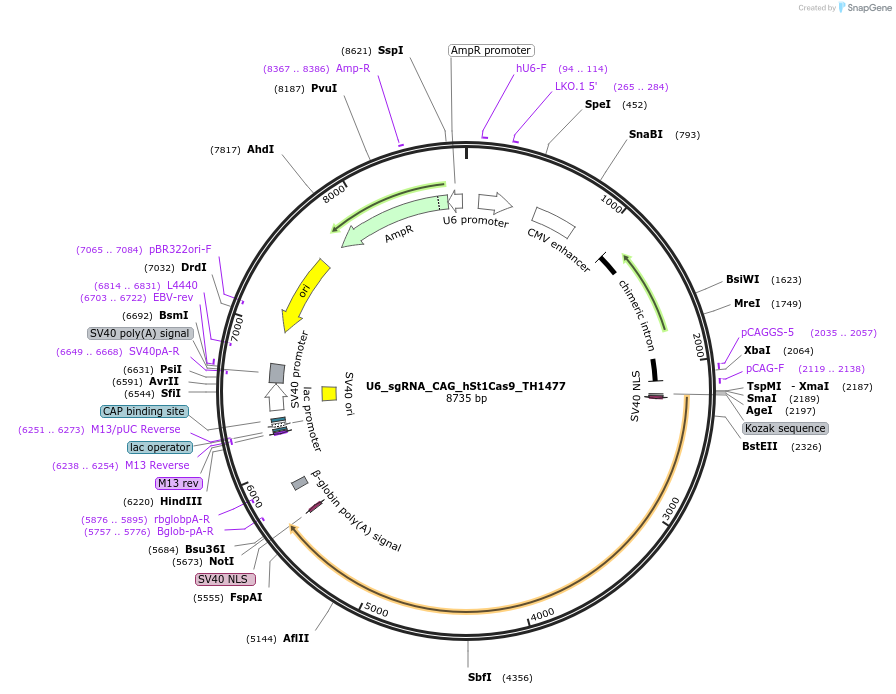

U6_sgRNA_CAG_hSt1Cas9_TH1477
(Plasmid #136655)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 136655 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    MSP1594_2x_NLS (Plasmid #110625)
  • Total vector size (bp) 8715
  • Vector type
    Mammalian Expression, CRISPR, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    St1Cas9 LMD-9:TH1477 Chimera
  • Species
    H. sapiens (human), Synthetic
  • Promoter CAG
  • Tags / Fusion Proteins
    • SV40 NLS (N terminal on insert)
    • SV40 NLS (C terminal on insert)

Cloning Information for Gene/Insert 1

Gene/Insert 2

  • Gene/Insert name
    sgRNA for St1Cas9
  • Species
    H. sapiens (human), Synthetic
  • Promoter hU6

Cloning Information for Gene/Insert 2

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    U6_sgRNA_CAG_hSt1Cas9_TH1477 was a gift from Yannick Doyon (Addgene plasmid # 136655 ; http://n2t.net/addgene:136655 ; RRID:Addgene_136655)

  • For your References section:

    Versatile and robust genome editing with Streptococcus thermophilus CRISPR1-Cas9. Agudelo D, Carter S, Velimirovic M, Duringer A, Rivest JF, Levesque S, Loehr J, Mouchiroud M, Cyr D, Waters PJ, Laplante M, Moineau S, Goulet A, Doyon Y. Genome Res. 2020 Jan;30(1):107-117. doi: 10.1101/gr.255414.119. Epub 2020 Jan 3. 10.1101/gr.255414.119 PubMed 31900288
