ABE8.17-d
(Plasmid
#136299)
-
Purposeexpresses ABE8.17-d in mammalian cells
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 136299 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

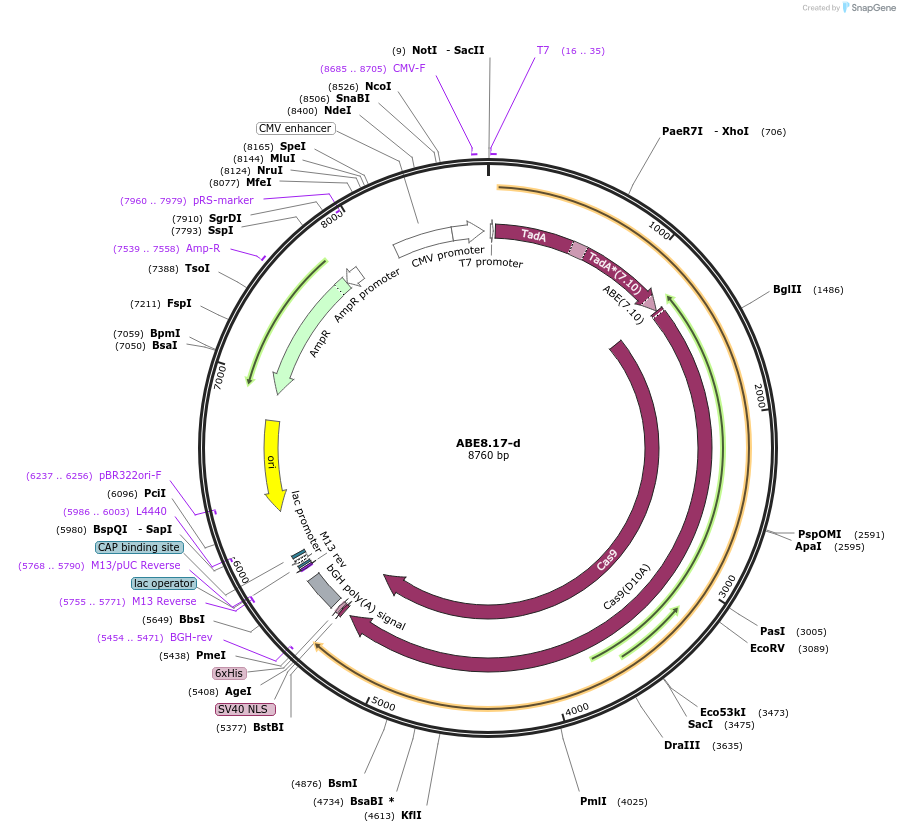

Backbone
-
Vector backbonepBR322, beta-lactamase maintenance, CMV promoter
-
Backbone manufacturernone
- Backbone size w/o insert (bp) 3400
- Total vector size (bp) 8760
-
Modifications to backbonenone
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameABE8.20-d
-
Insert Size (bp)5300
-
MutationD10A in S. pyogenes Cas9, TadA mutations described in manuscript
-
Tag
/ Fusion Protein
- C-terminal BPNLS (C terminal on insert)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer T7
- 3′ sequencing primer M13R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/2020.03.13.990630v1 for bioRxiv preprint.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
ABE8.17-d was a gift from Nicole Gaudelli (Addgene plasmid # 136299 ; http://n2t.net/addgene:136299 ; RRID:Addgene_136299) -
For your References section:
Directed evolution of adenine base editors with increased activity and therapeutic application. Gaudelli NM, Lam DK, Rees HA, Sola-Esteves NM, Barrera LA, Born DA, Edwards A, Gehrke JM, Lee SJ, Liquori AJ, Murray R, Packer MS, Rinaldi C, Slaymaker IM, Yen J, Young LE, Ciaramella G. Nat Biotechnol. 2020 Apr 13. pii: 10.1038/s41587-020-0491-6. doi: 10.1038/s41587-020-0491-6. 10.1038/s41587-020-0491-6 PubMed 32284586
