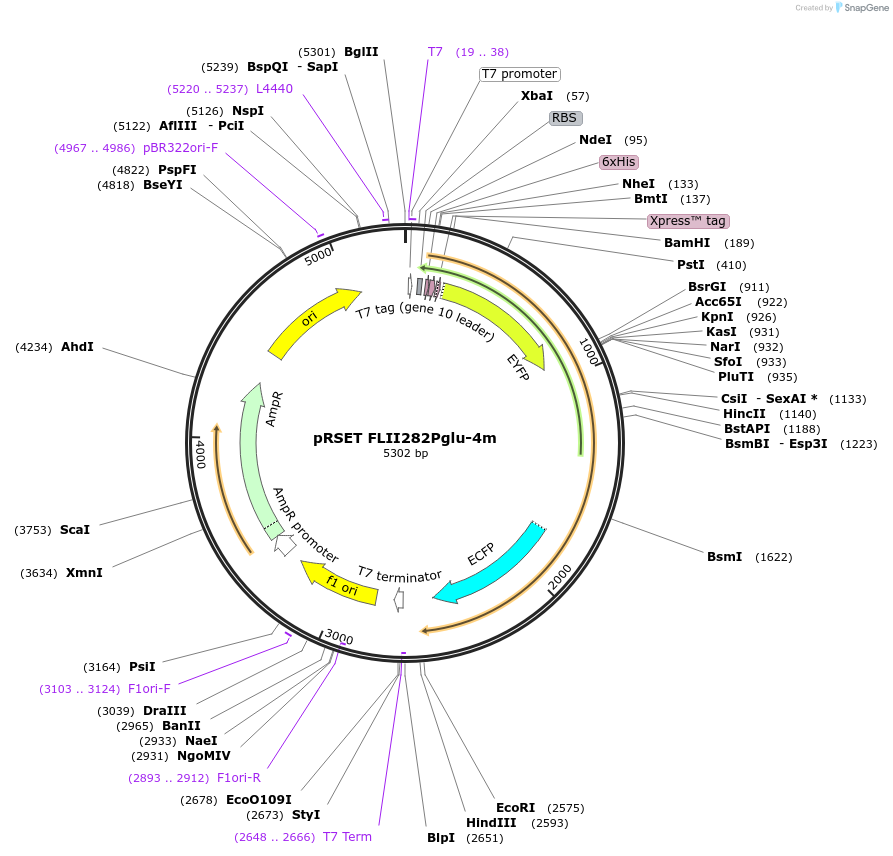

pRSET FLII282Pglu-4m
(Plasmid #13564)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 13564 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pRSET-B
  • Backbone size w/o insert (bp) 2897
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    FLIPglu F16A T282S-ECFP-N283R
  • Alt name
    mglB with ECFP inserted
  • Alt name
    Periplasmic glucose binding
  • Species
    E. coli
  • Insert Size (bp)
    2400
  • Mutation
    F16A, ECFP insert in binding protein
  • Tag / Fusion Protein
    • Citrine (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer N/A
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Citrine is from Roger Tsien, UCSD.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

For more information, see
http://carnegiedpb.stanford.edu/research/frommer/nanosensors/index.html

Citrine is modified version of EYFP.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRSET FLII282Pglu-4m was a gift from Wolf Frommer (Addgene plasmid # 13564 ; http://n2t.net/addgene:13564 ; RRID:Addgene_13564)

  • For your References section:

    Construction and optimization of a family of genetically encoded metabolite sensors by semirational protein engineering. Deuschle K, Okumoto S, Fehr M, Looger LL, Kozhukh L, Frommer WB. Protein Sci. 2005 Sep . 14(9):2304-14. 10.1110/ps.051508105 PubMed 16131659
