EF1α-mNeonGreen-Z1
(Plasmid
#135613)
-
PurposemNeonGreen monomeric fluorescent protein expression for mammalian cells under EF1a-HTLV promoter in minimal backbone plasmid.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 135613 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneZ1
-
Backbone manufacturerGreen Lab
- Backbone size w/o insert (bp) 2150
- Total vector size (bp) 2861
-
Vector typeMammalian Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Bleocin (Zeocin), 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemNeonGreen
-
Alt namemonomeric neon green
-
SpeciesSynthetic
-
Insert Size (bp)711
- Promoter EF1a-HTLV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NcoI (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer gttacagatccaagctgtgacc
- 3′ sequencing primer GATGAGTTTGGACAAACCAC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
EF1α-mNeonGreen-Z1 was a gift from Jordan Green (Addgene plasmid # 135613 ; http://n2t.net/addgene:135613 ; RRID:Addgene_135613)

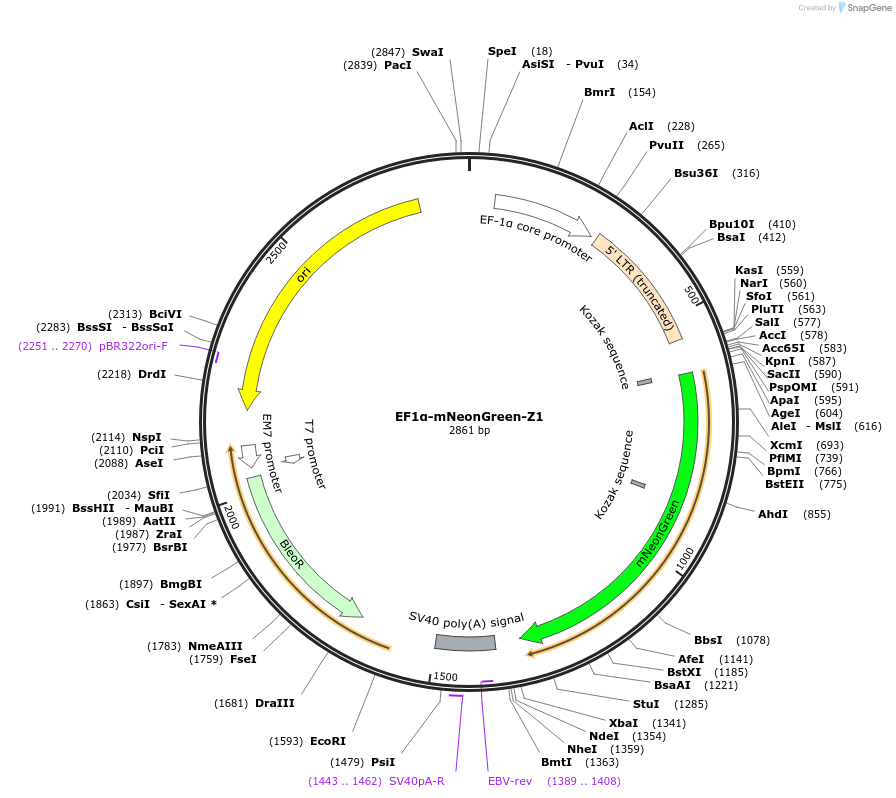

Map uploaded by the depositor.
