Syn:NRX-TM-Nav1.6-CIBN-2xMKII-hLOV-TEcs(ENLYFQ/M)-tTA
(Plasmid
#135462)
-
PurposeNeuronal expression of uFLARE TF component
-
Depositing Lab
-

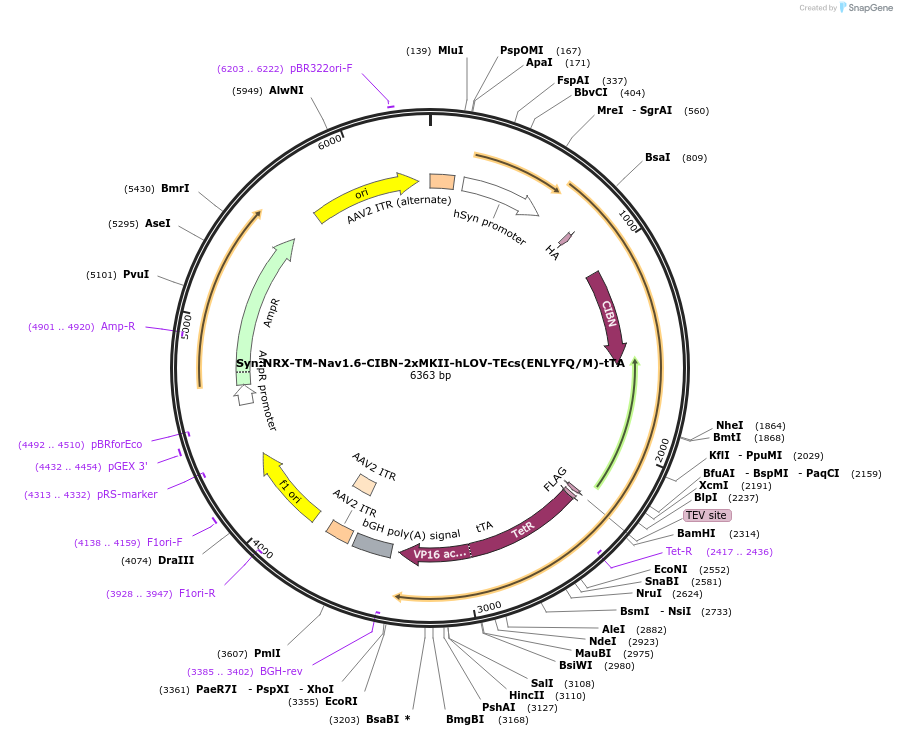

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 135462 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneAAV
-
Backbone manufacturerStratagene
- Backbone size w/o insert (bp) 3663
- Total vector size (bp) 6363
-
Vector typeMammalian Expression, AAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNRX-TM-Nav1.6-CIBN-2xMKII-hLOV-TEVcs(ENLYFQ/M)-tTA
-
SpeciesSynthetic
-
Insert Size (bp)2700
- Promoter Synapsin
-
Tag
/ Fusion Protein
- HA, flag, VP16
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer Syn-f
- 3′ sequencing primer PolyA-r (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Reporter gene associated with this construct is Addgene plasmid # 92202 published in: Nat. Biotechnol. 35, 864–871 (2017).
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Syn:NRX-TM-Nav1.6-CIBN-2xMKII-hLOV-TEcs(ENLYFQ/M)-tTA was a gift from Alice Ting (Addgene plasmid # 135462 ; http://n2t.net/addgene:135462 ; RRID:Addgene_135462) -
For your References section:
Directed evolution improves the catalytic efficiency of TEV protease. Sanchez MI, Ting AY. Nat Methods. 2019 Dec 9. pii: 10.1038/s41592-019-0665-7. doi: 10.1038/s41592-019-0665-7. 10.1038/s41592-019-0665-7 PubMed 31819267
